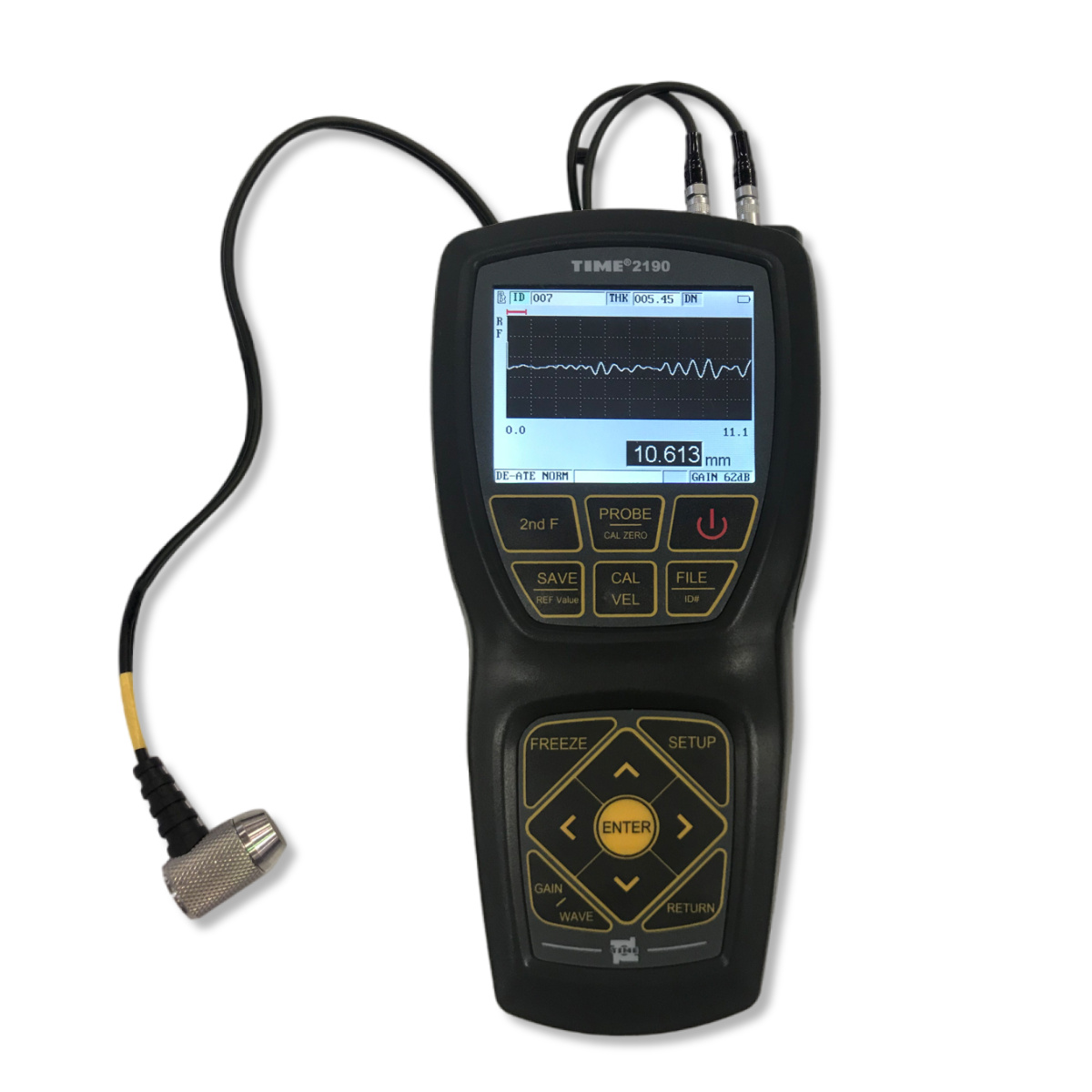

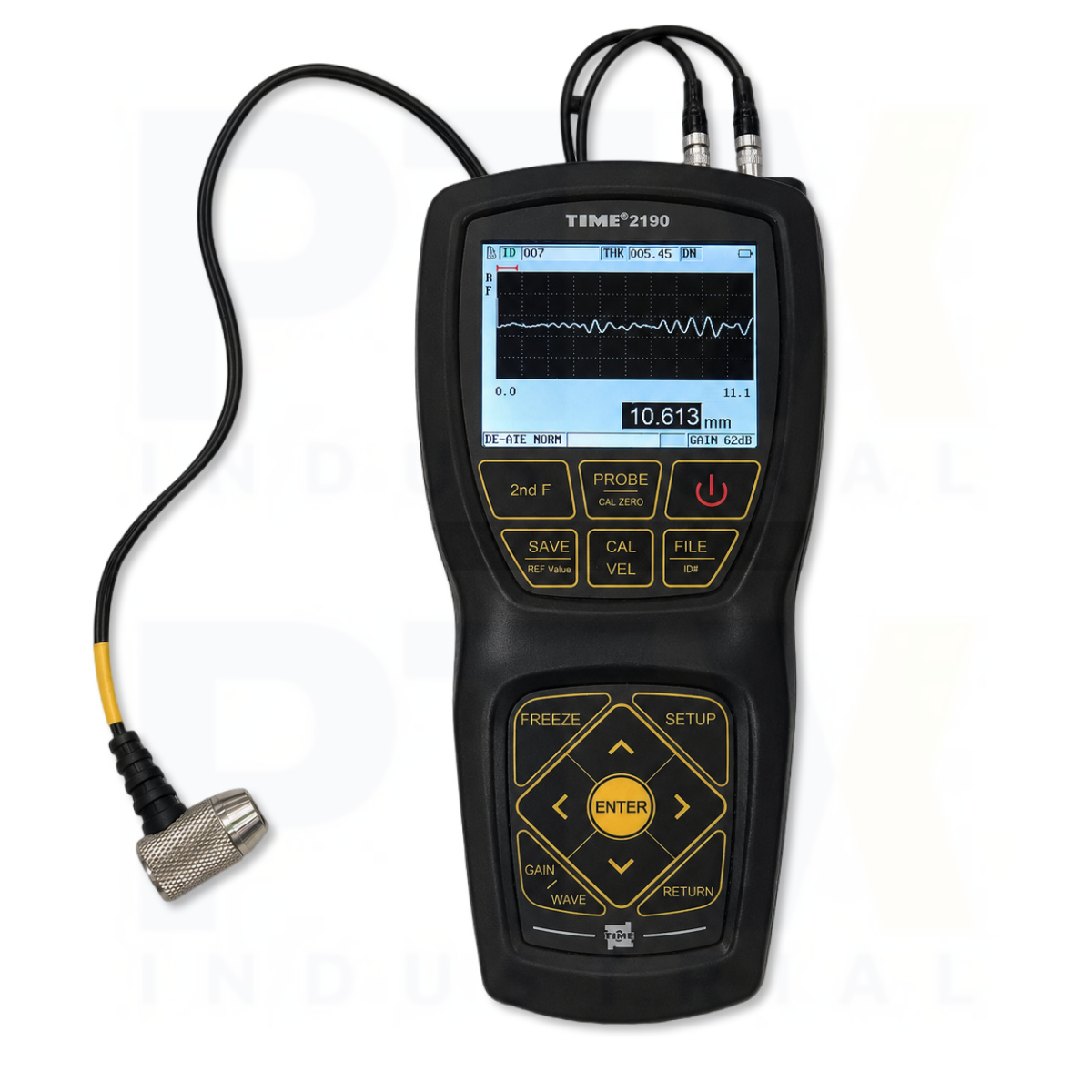

Name: TIME 2190 Ultrasonic Thickness Gauge (A/B-Scan)
Brand: TIME
SKU: 4674
Price: 4300.00 AUD
Availability: InStock

TIME 2190 Ultrasonic Thickness Gauge (A/B-Scan)

Category: Ultrasonic Thickness Gauge Brand: TIME

3,655.00 USD $ ex. GST

IN STOCK

TIME 2190 A/B-Scan Ultrasonic Thickness Gauge combines high-precision thickness measurement with advanced A-scan waveform analysis and B-scan visualization. Supporting through-coating measurement, Thru-Coat technology, automatic gain control, adjustable square-wave pulser, and storage of up to 500,000 measurements and waveforms, it is ideal for corrosion monitoring, asset integrity management, pipelines, pressure vessels, storage tanks, and critical industrial inspections.

Product Highlights

Traceable Calibration Available (Additional Cost)
2-Year Warranty Coverage (Main Unit)
Factory Calibration Certificate Included
Australia-Based Local Stock and Technical Support

TIME 2190 Ultrasonic Thickness Gauge (A/B-Scan)

This item: TIME 2190 Ultrasonic Thickness Gauge (A/B-Scan) 3,655.00 USD $ ex. GST 3,655.00 USD $ ex. GST

IN STOCK

Step Block 4 Steps

Step Block 4 Steps127.50 USD $ ex. GST

IN STOCK

- +

Step Block 5 Steps

Step Block 5 Steps212.50 USD $ ex. GST

IN STOCK

- +

▸Description

General Information
Category	TIME 2190 Ultrasonic Thickness Gauge
Model	TIME 2190
Manufacturer (OEM)	Beijing High Time Technology Co., Ltd.
Features	▪ A-scan waveform display for echo analysis and measurement of complex workpieces ▪ Compatible with a wide range of transducers, including both single and dual-element types ▪ Adjustable blanking function to suppress aftershocks and signal clutter ▪ Echo-echo mode measures true metal thickness while ignoring coating layers ▪ Thru-coat technology enables measurement of both metal and non-metal coating thickness ▪ Automatic signal amplification function ▪ Adjustable voltage and variable pulse-width square wave pulse generator ▪ Single-value B-scan display function ▪ Fast measurement mode up to 20 readings per second ▪ Upper and lower limit settings with alarm function ▪ Data output to PC via software ▪ Stores up to 500,000 measurement values and waveforms

▸Technical Specifications

Technical Specification
Model	TIME2190 Ultrasonic Thickness Gauge
Measuring Range (mm)	0.20–508 (depending on probe)
Accuracy	±(0.5%H + 0.01) mm (material dependent)
Velocity Range (m/s)	508–18699
Display	Color TFT LCD, 320 × 240 pixels
Pulse Generator	Adjustable square wave pulse generator
Resolution (mm)	0.001 / 0.01 / 0.1 (selectable)
Emission Voltage	60 V / 110 V / 150 V / 200 V (selectable)
Pulse Width	Varies with transducer frequency
Gain Range	0–99 dB (1 dB step)
Frequency Range	0.5–20 MHz
Measurement Rate	Standard: 4 Hz; Fast: 20 Hz
Transducer Settings	10 preset + 22 custom configurations
Data Storage	500 data files, each storing 1000 measurements and waveforms
Operating Temperature (°C)	0–40
Power Supply	3 × AA batteries or NiMH batteries
Dimensions (mm)	187 × 87 × 43
Weight (g)	360
Standard Delivery
Main Unit	1
5 MHz Dual Element Transducer (DK537EE)	1
Couplant	1
TIME Certificate	1
Warranty Card	1
Instruction Manual	1

▸Model Comparison

Model	Positioning	Measuring Range (Steel)	Accuracy	Resolution	Echo-Echo	Through Coating	B-Scan	A-Scan	Special Application	Weight
TIME2110	Basic Entry-Level	1.2–225 mm	±(0.5%H + 0.04) mm	0.1 mm	❌	❌	❌	❌	General thickness measurement	140 g
TIME2113	Entry-Level High Resolution	1.2–225 mm	±(0.5%H + 0.04) mm	0.01 mm	❌	❌	❌	❌	General inspection requiring finer resolution	140 g
TIME2130	Standard Industrial	0.75–300 mm	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	General maintenance, pipe inspection	370 g
TIME2132	High-Temperature	1.2–225 mm (5–80 mm @ 300°C)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	Hot pipes, boilers, furnaces (up to 300°C)	370 g
TIME2134	Cast Iron Specialist	1.2–300 mm (5–40 mm cast iron)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	Cast iron and coarse-grain materials	370 g
TIME2136	Coating Compensation	1.2–200 mm (T-E) / 3–20 mm (E-E)	±(0.5%H + 0.04) mm	0.001 / 0.01 mm	✅	✅	❌	❌	Painted and coated steel structures	220 g
TIME2170	Precision Thin Material	0.15–20 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 mm	✅	Limited	❌	❌	Thin sheet metal, tubing, precision components	220 g
TIME2180B	Professional Corrosion Monitoring	0.6–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	❌	Mining, corrosion monitoring, oil & gas	178 g
TIME2190	Advanced NDT Thickness Gauge	0.2–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	✅	Advanced NDT, asset integrity, corrosion mapping	360 g
