▸Description
| General Information | |

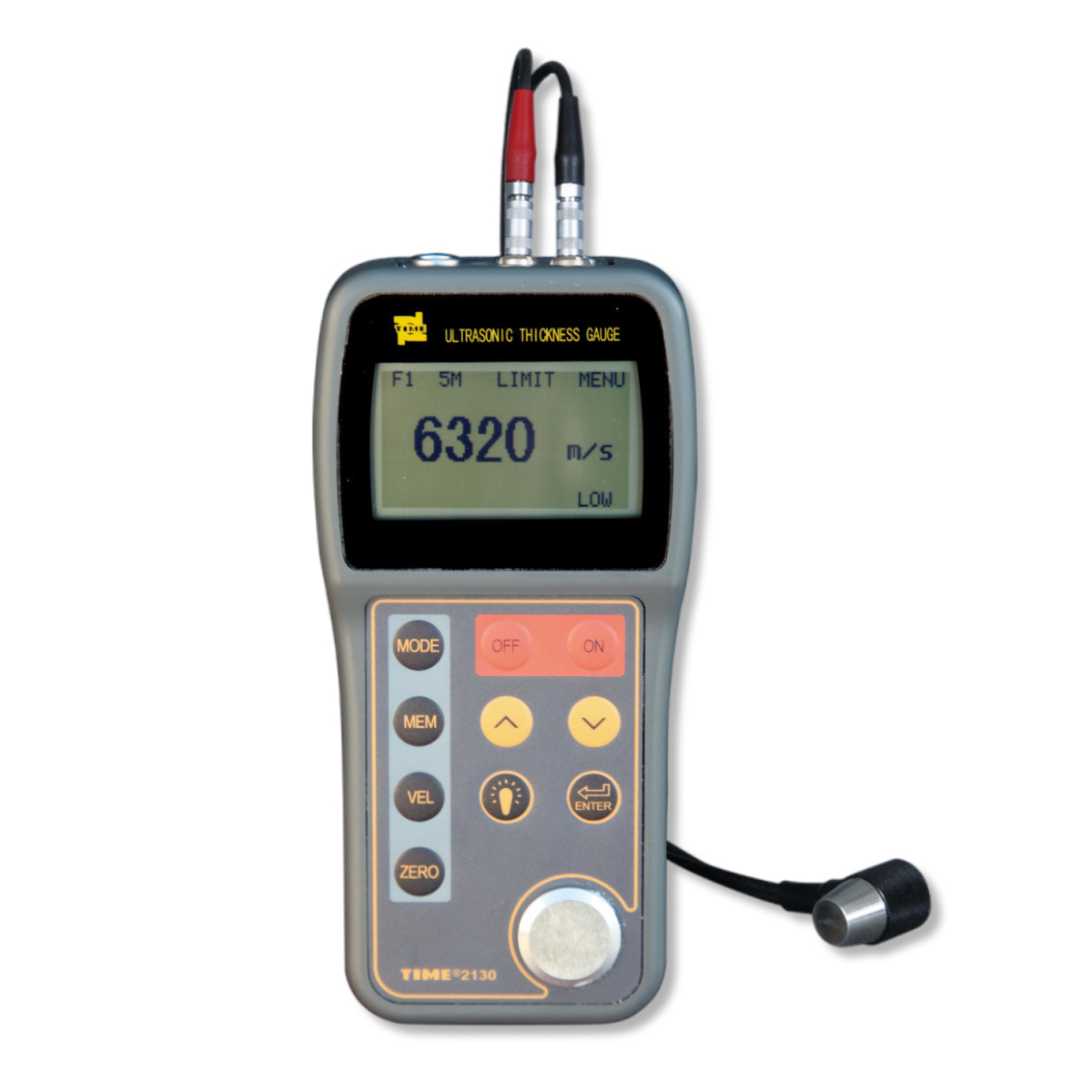

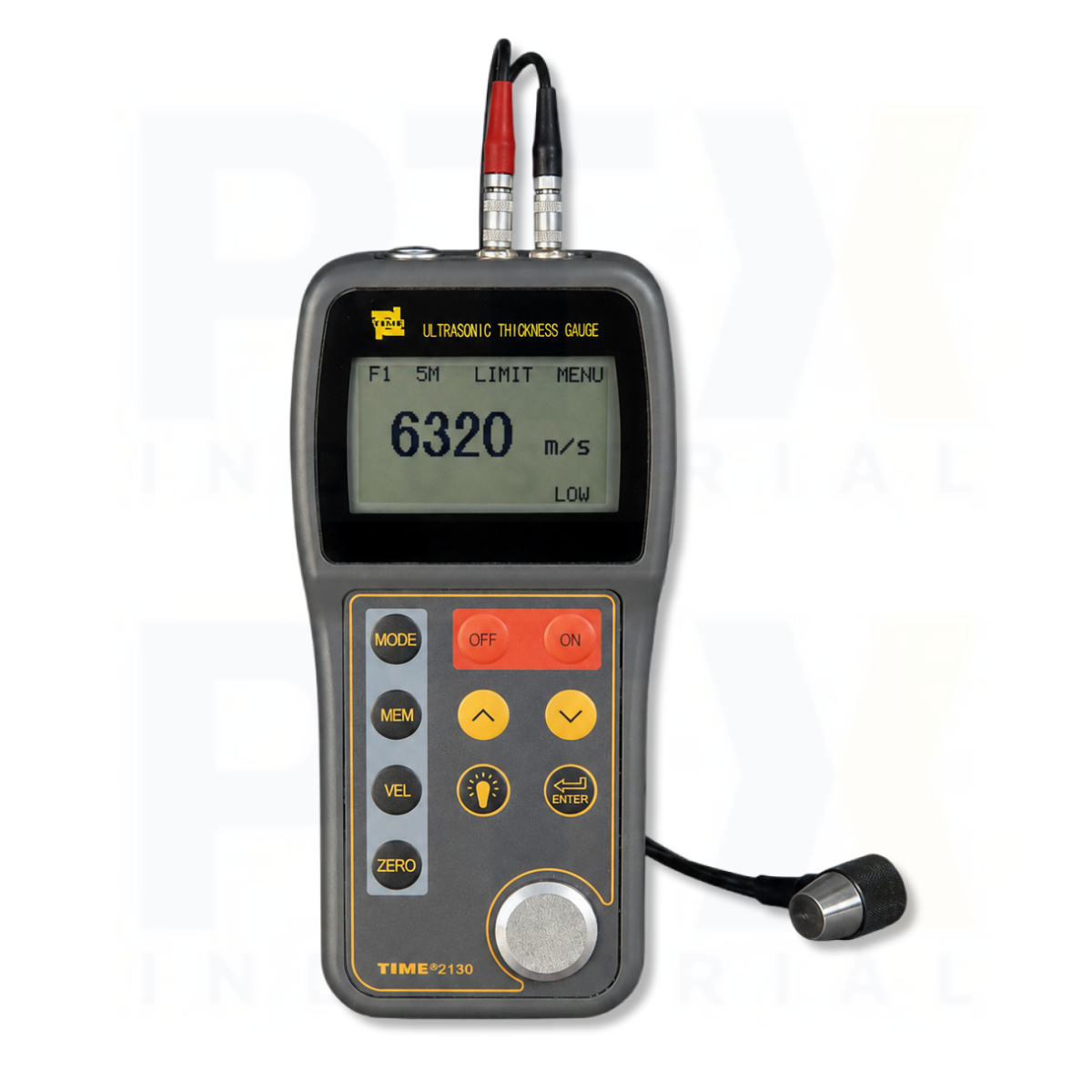

| Category | TIME 2130 Ultrasonic Thickness Gauge |
| Model | TIME 2130 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME 2130: Equipped with RS232 interface for connection to printer and PC (optional software supported) ▪ Free conversion between metric and imperial units ▪ Automatic zero-point calibration to correct system errors ▪ Gain adjustment, low battery indication, and automatic power-off ▪ Stores up to 500 measurement values and 5 sound velocity settings; supports delete and recall functions ▪ Large LCD screen with backlight and adjustable contrast ▪ Two display modes: current thickness and minimum thickness ▪ Two-point calibration for improved accuracy ▪ Upper and lower limit settings with audible alarm ▪ Selectable resolution: 0.01 mm and 0.1 mm |
| Technical Specification | |
| Measuring Range | 0.75–300.00 mm (steel, depends on transducer) |
| Measuring Accuracy | ± (1% H + 0.1) mm (H = actual thickness) |
| Min. Pipe Size (steel) | Ø20 mm × 3.0 mm |
| Display Resolution | 0.1 / 0.01 mm |
| Sound Velocity | 1000–9999 m/s |
| Power Supply | 2 × AA batteries (1.5 V) |
| Battery Life | Approx. 100 hours (without backlight) |
| Unit Selection | mm / inch |
| Operating Temperature | −10 to +60 °C |
| Dimensions (mm) | 152 × 74 × 35 |
| Weight (g) | 370 |
| Standard Delivery | |
| Main Unit | 1 |
| Transducer 5PΦ10/90° | 1 |
| Rubber Jacket | 1 |
| Couplant | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
