āøDescription

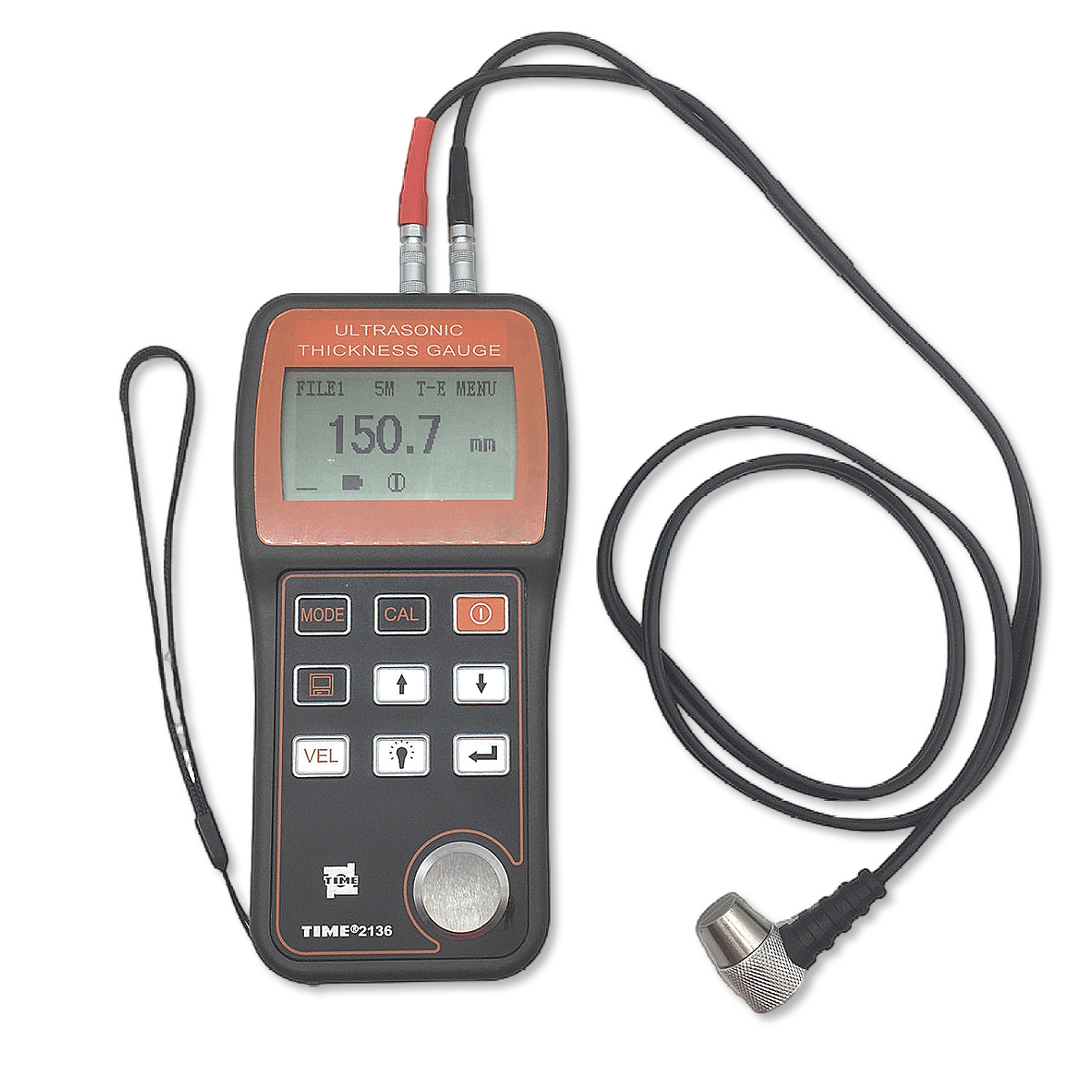

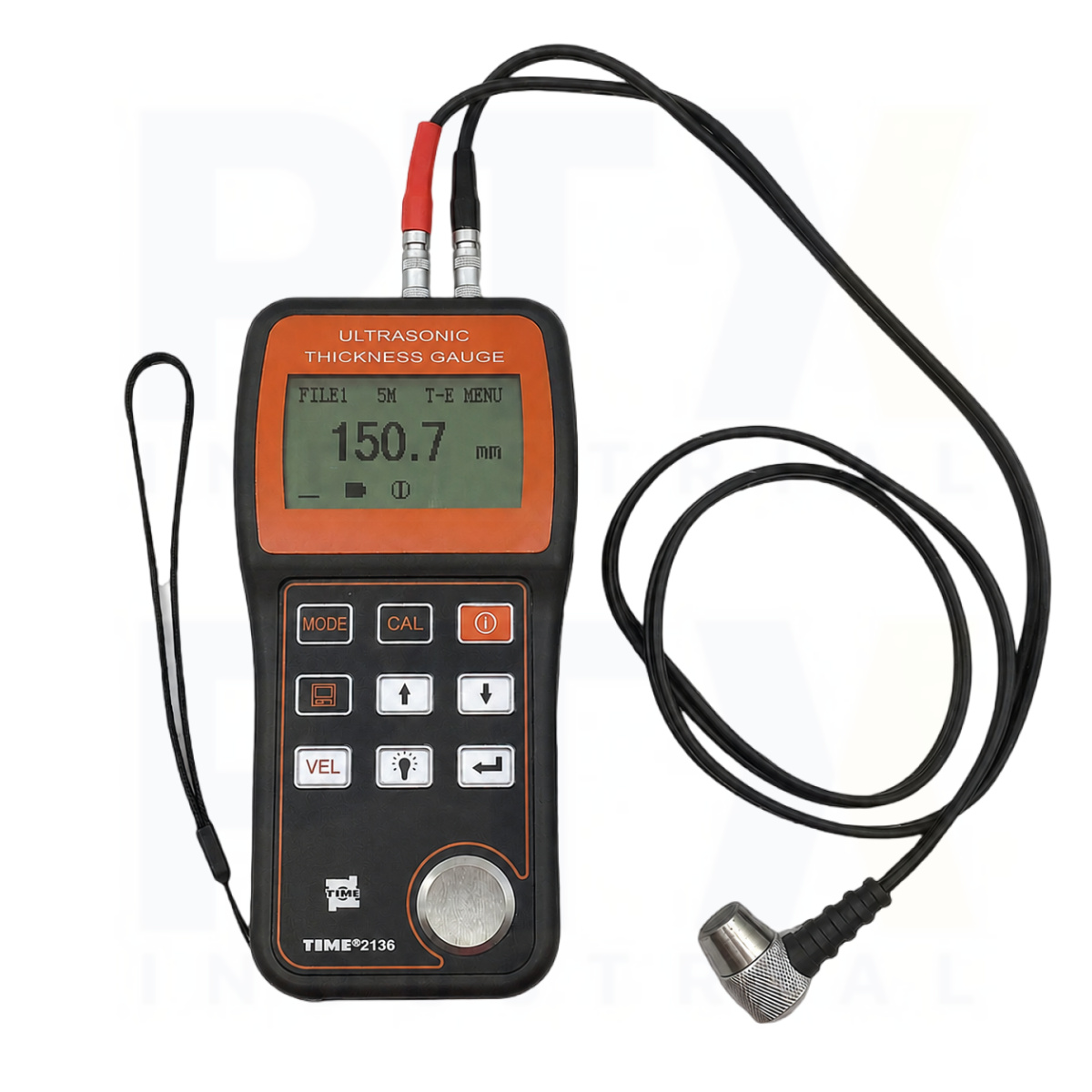

TIME 2136 Ultrasonic Thickness Gauge is an advanced thickness measurement instrument designed to accurately measure metal wall thickness without removing paint, epoxy, or protective coatings. Using echo-echo (E-E) technology with a dual-element transducer, the instrument automatically excludes coating thickness and displays the true substrate thickness, significantly reducing inspection time and preparation work.
The gauge supports multiple transducers for different materials and thickness ranges, including optional probes for cast iron and coarse-grained materials. Additional features include 0.001 mm high-resolution measurement, 500-reading memory, differential measurement mode, audible alarm limits, and RS232 connectivity for data transfer and reporting.
| General Information | |
| Category | TIME 2136 Ultrasonic Thickness Gauge |
| Model | TIME 2136 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | āŖ Measures through coated surfaces and eliminates paint thickness using a dual-element transducer in echo-echo mode āŖ Automatic identification of standard transducers or manual preset of transducer frequency āŖ Optional transducers TSTU17 and TSTU32 for measuring various materials āŖ RS232 interface for PC connection āŖ Upper and lower limit settings with audible alarm āŖ Differential mode displays the deviation between measured thickness and preset reference value āŖ Memory capacity of up to 500 measurement data points āŖ Selectable resolution: 0.001 mm or 0.01 mm |
| Technical Specification | |
| Measuring Range (depends on probe) | Transducer 5PĆ10/90Ā°: 1.2ā200 mm (steel, T-E mode); 3ā20 mm (steel, E-E mode); Transducer TSTU32: 5ā300 mm (steel, T-E mode) |
| Display Resolution | 0.001 mm or 0.01 mm |
| Sound Velocity | 1000ā9999 m/s |
| Display | Backlight |
| Measuring Accuracy | Ā± (1% H + 0.1) mm (H = actual thickness) |
| Data Output | RS232 |
| Calibration Plate | 4.0 mm (steel) |
| Power Supply | 2 Ć AA batteries (1.5 V) |
| Unit Selection | mm / inch |
| Operating Temperature | ā10 to 60 Ā°C |
| Dimensions (mm) | 152 Ć 74 Ć 35 |
| Weight (g) | 220 |
| Standard Delivery | |
| Main Unit | 1 |
| Transducer 5PĪ¦10/90Ā° | 1 |
| Couplant | 1 |
| Protective Sheath (for Main Unit) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
