▸Description

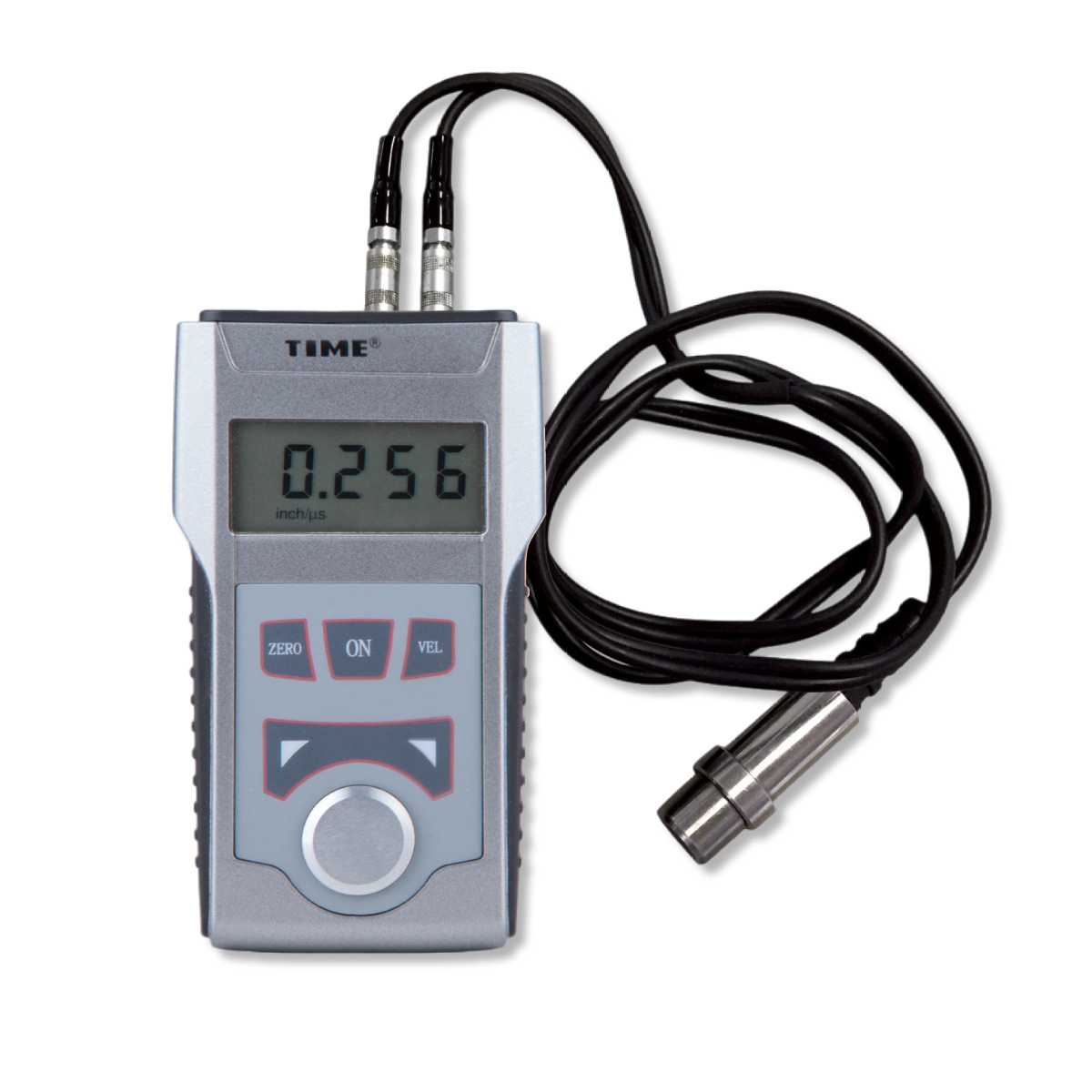

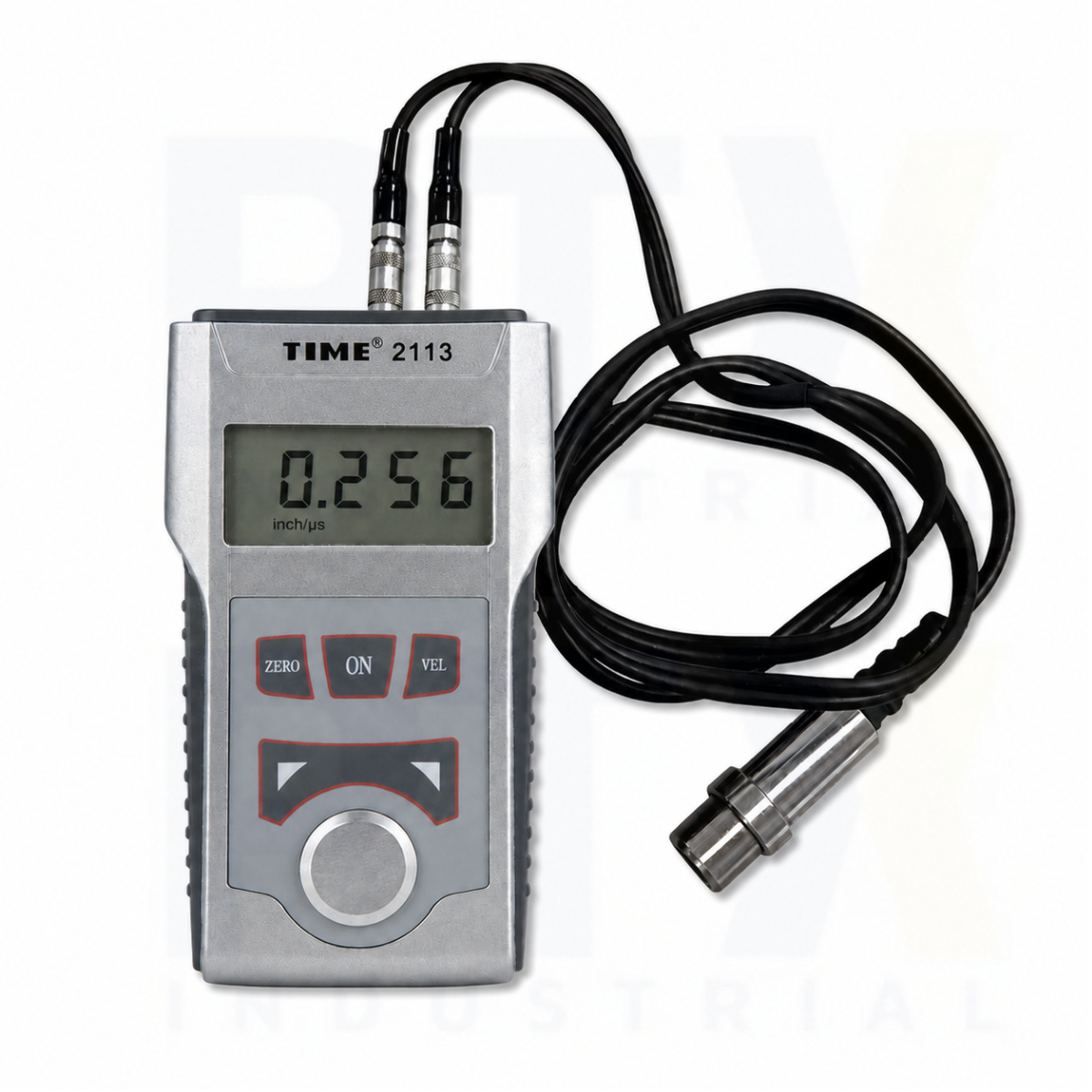

TIME 2113 Precision Ultrasonic Thickness Gauge is a compact and high-accuracy thickness measurement instrument designed for non-destructive testing of metals and other ultrasonic-conductive materials. Offering a measuring range of 1.2 mm to 225 mm with a high resolution of 0.01 mm, it provides reliable wall thickness measurement from a single accessible surface.
The instrument incorporates automatic zero calibration, non-linear software compensation, adjustable sound velocity settings, and memory storage for up to 10 measurements to ensure consistent and repeatable results across different materials. Its lightweight, oil-resistant design and simple operation make it suitable for corrosion monitoring, pipe and tank inspection, pressure vessels, structural steel, machinery maintenance, and manufacturing quality assurance.
| General Information | |
| Category | TIME 2113 Ultrasonic Thickness Gauge |
| Model | TIME 2113 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Free conversion between metric and imperial units ▪ Automatic zero-point calibration to correct system errors ▪ Automatic non-linear compensation using software to improve measurement accuracy ▪ Up/down keys allow quick selection of sound velocity and thickness, and enable review of stored measurements ▪ Coupling status indication for reliable measurement conditions ▪ Sound velocity can be determined based on the thickness of the test block ▪ Stores up to 10 thickness values with memory retention after power-off ▪ Stores sound velocity values for five different materials without requiring conversion tables ▪ Low battery indication and automatic power-off function ▪ Oil-resistant design for extended service life |
| Technical Specification | |
| Measuring Range (mm) | 1.2–225.0 |
| Display Type | 4-digit LCD |
| Minimum Display Unit | 0.01 mm |
| Sound Velocity Range (m/s) | 1000–9999 |
| Measuring Error | ± (1% H + 0.1) mm (H = actual thickness) |
| Power Supply | 2 × AA batteries (1.5 V) |
| Power Consumption | < 20 mA (3 V) |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 124 × 68 × 27 |
| Weight (g) | 140 |
| Standard Delivery | |
| Main Unit | 1 |
| 5PΦ10 Transducer | 1 |
| Couplant | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
| Optional Delivery |
| 5P 10/90 transducer (1.2~225.0mm) |
| SZ2.5P transducer (3.0~300.0mm) |
| 7PΦ6 transducer (0.75~60mm) |
