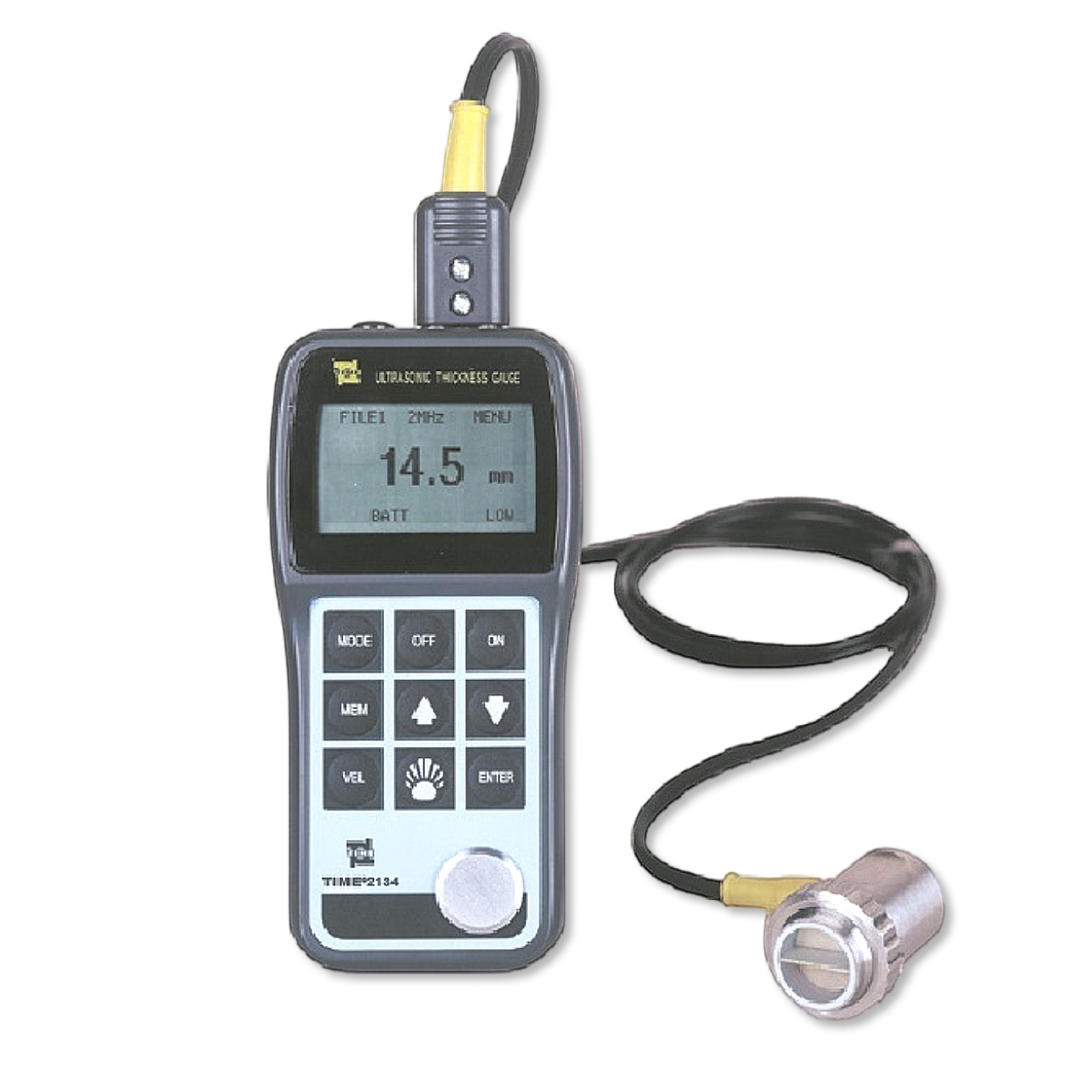

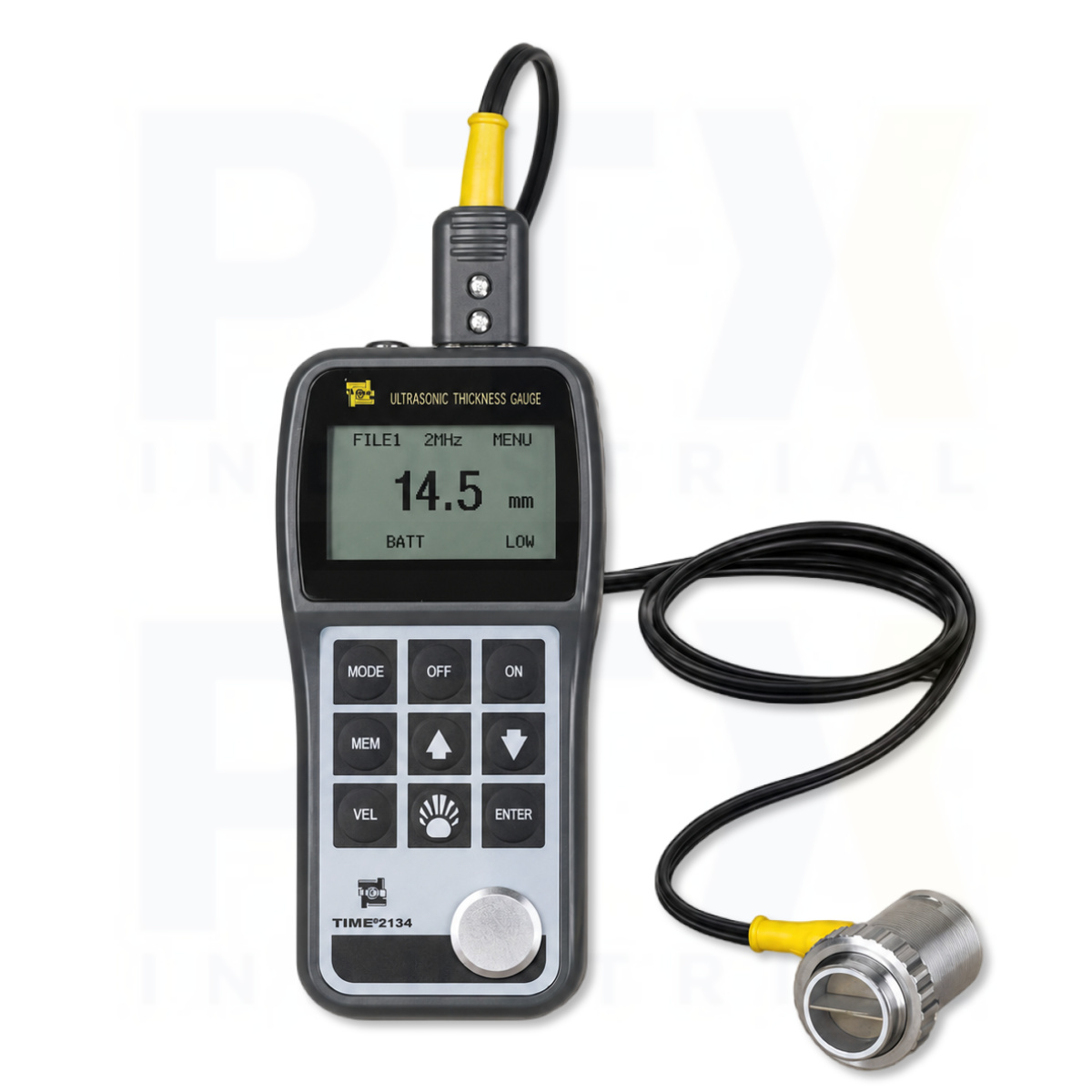

Name: TIME 2134 Ultrasonic Thickness Gauge (Cast Iron)
Brand: TIME
SKU: 4671
Price: 1950.00 AUD
Availability: BackOrder

TIME 2134 Ultrasonic Thickness Gauge (Cast Iron)

Category: Ultrasonic Thickness Gauge Brand: TIME

1,657.50 USD $ ex. GST

AVAILABLE ON BACKORDER

TIME 2134 Cast Iron Ultrasonic Thickness Gauge is specially designed for accurate thickness measurement of cast iron and coarse-grained materials using the dedicated TSTU32 transducer. Featuring a measuring range up to 300 mm, 500-reading memory, alarm functions, and two-point calibration, it is ideal for foundries, cast components, machinery housings, pumps, valves, and industrial maintenance applications.

Product Highlights

Traceable Calibration Available (Additional Cost)
2-Year Warranty Coverage (Main Unit)
Factory Calibration Certificate Included
Australia-Based Local Stock and Technical Support

TIME 2134 Ultrasonic Thickness Gauge (Cast Iron)

This item: TIME 2134 Ultrasonic Thickness Gauge (Cast Iron) 1,657.50 USD $ ex. GST 1,657.50 USD $ ex. GST

AVAILABLE ON BACKORDER

Step Block 4 Steps

Step Block 4 Steps127.50 USD $ ex. GST

IN STOCK

- +

Step Block 5 Steps

Step Block 5 Steps212.50 USD $ ex. GST

IN STOCK

- +

▸Description

General Information
Category	TIME 2134 Ultrasonic Thickness Gauge
Model	TIME 2134
Manufacturer (OEM)	Beijing High Time Technology Co., Ltd.
Features	▪ TIME 2134: Equipped with TSTU32 transducer for cast iron applications ▪ Free conversion between metric and imperial units ▪ Automatic zero-point calibration to correct system errors ▪ Gain adjustment, low battery indication, and automatic power-off ▪ Stores up to 500 measurement values and 5 sound velocity settings; supports delete and recall functions ▪ Large LCD screen with backlight and adjustable contrast ▪ Two display modes: current thickness and minimum thickness ▪ Two-point calibration for improved accuracy ▪ Upper and lower limit settings with audible alarm ▪ Selectable resolution: 0.01 mm and 0.1 mm

▸Technical Specifications

Technical Specification
Model	TIME2134 Ultrasonic Thickness Gauge
Measuring Range	1.2mm-300.00mm 5.0mm-40.0mm (casting iron)
Accuracy	±(0.5%H + 0.04) mm (material dependent)
Min. Pipe Size (steel)	Ø20 mm × 3.0 mm
Display Resolution	0. 1mm
Sound Velocity	1000–9999 m/s
Power Supply	2 × AA batteries (1.5 V)
Battery Life	Approx. 100 hours (without backlight)
Unit Selection	mm / inch
Operating Temperature	−10 to +60 °C
Dimensions (mm)	152 × 74 × 35
Weight (g)	370
Standard Delivery
Main Unit	1
Transducer TSTU32	1
Rubber Jacket	1
Couplant	1
TIME Certificate	1
Warranty Card	1
Instruction Manual	1

▸Model Comparison

Model	Positioning	Measuring Range (Steel)	Accuracy	Resolution	Echo-Echo	Through Coating	B-Scan	A-Scan	Special Application	Weight
TIME2110	Basic Entry-Level	1.2–225 mm	±(0.5%H + 0.04) mm	0.1 mm	❌	❌	❌	❌	General thickness measurement	140 g
TIME2113	Entry-Level High Resolution	1.2–225 mm	±(0.5%H + 0.04) mm	0.01 mm	❌	❌	❌	❌	General inspection requiring finer resolution	140 g
TIME2130	Standard Industrial	0.75–300 mm	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	General maintenance, pipe inspection	370 g
TIME2132	High-Temperature	1.2–225 mm (5–80 mm @ 300°C)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	Hot pipes, boilers, furnaces (up to 300°C)	370 g
TIME2134	Cast Iron Specialist	1.2–300 mm (5–40 mm cast iron)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	Cast iron and coarse-grain materials	370 g
TIME2136	Coating Compensation	1.2–200 mm (T-E) / 3–20 mm (E-E)	±(0.5%H + 0.04) mm	0.001 / 0.01 mm	✅	✅	❌	❌	Painted and coated steel structures	220 g
TIME2170	Precision Thin Material	0.15–20 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 mm	✅	Limited	❌	❌	Thin sheet metal, tubing, precision components	220 g
TIME2180B	Professional Corrosion Monitoring	0.6–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	❌	Mining, corrosion monitoring, oil & gas	178 g
TIME2190	Advanced NDT Thickness Gauge	0.2–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	✅	Advanced NDT, asset integrity, corrosion mapping	360 g
