āøDescription
| General Information | |

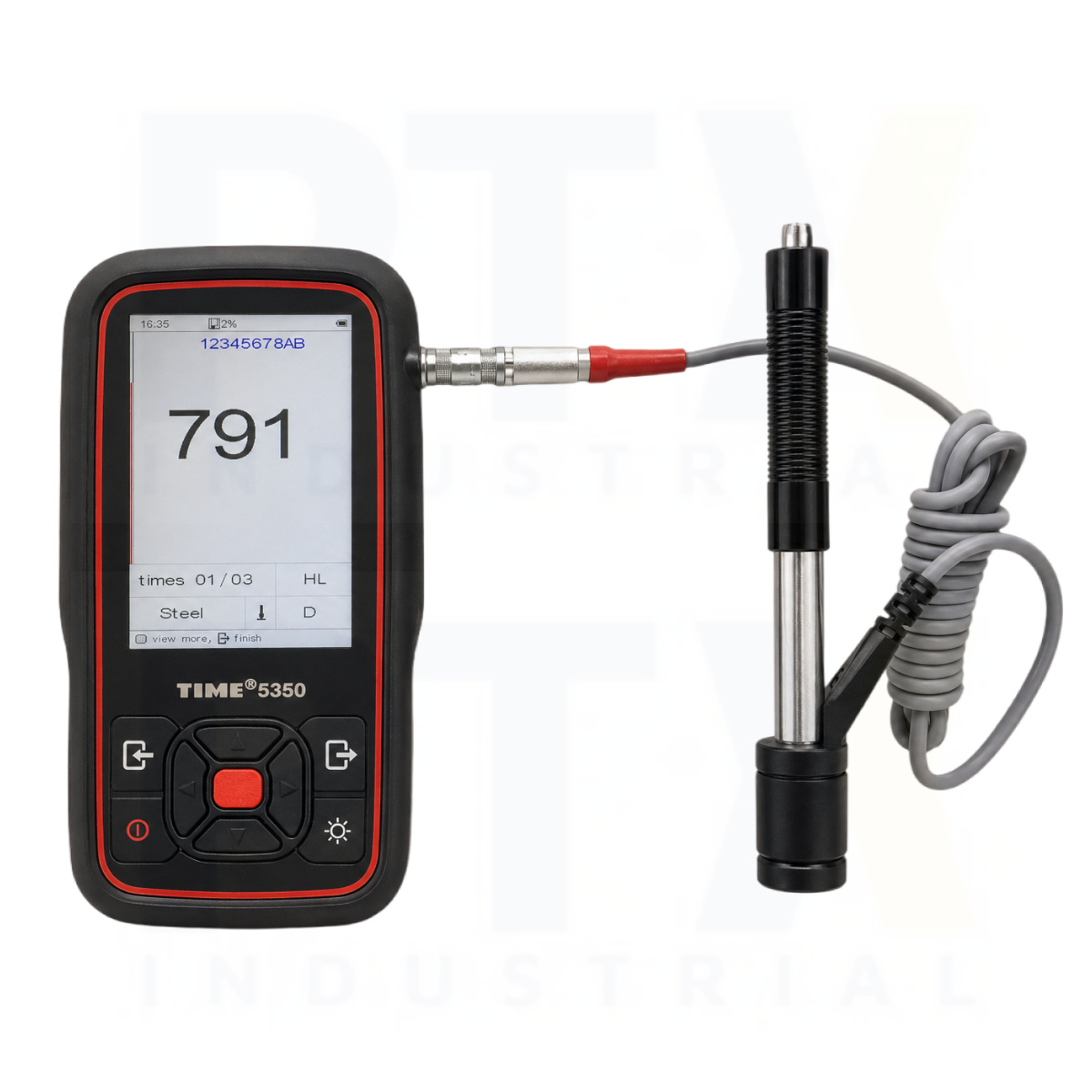

| Category | TIME 5350 Leeb Hardness Tester |
| Model | TIME 5350 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | āŖ Simple menu with instructions for easy and convenient operation āŖ Conversion of common hardness scales (HL, HV, HB, HRC, HRB, HS) and tensile strength āŖ Supports 7 types of optional impact devices with automatic recognition; standard D-type included āŖ 3.5-inch LCD (320 Ć 480) display with clear image and three adjustable backlight levels for different operating conditions āŖ Data storage capacity of 200 groups, including single value, average value, date, impact direction, number of measurements, material, and hardness scale āŖ Upper and lower limit setting with audible alarm āŖ Data transfer to PC via USB or RS232 in Word and Excel formats, with powerful PC software included āŖ Supports MicroSD card up to 32 GB for extended data storage āŖ Optional removable printer for direct printing of test results āŖ Built-in conversion table with direct HB value reading when using D/DC impact device āŖ Software calibration function |
| Technical Specification | |
| Measuring Range | 170ā960 HLD |
| Hardness Scales | HL, HB, HRB, HRC, HV, HS |
| Measuring Direction | 360Ā° |
| Tolerance | Ā±6 HLD (at 760 HLD) |
| Repeatability | 6 HLD (at 760 HLD) |
| Power Supply | 5 V / 500 mA |
| Charging Time (h) | 5 |
| Humidity | ā¤ 90% |
| Operating Temperature (Ā°C) | 0ā40 |
| Dimensions (mm) | 149 Ć 82 Ć 23 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Impact Device Type D | 1 |
| Test Block (HLD) | 1 |
| Small Support Ring | 1 |
| Charger | 1 |
| Cleaning Brush | 1 |
| MicroSD Card | 1 |
| Communication Cable | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
