| General Information | |
| Category | Portable Ultrasonic Hardness Tester |
| Model | TIME®5631 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |

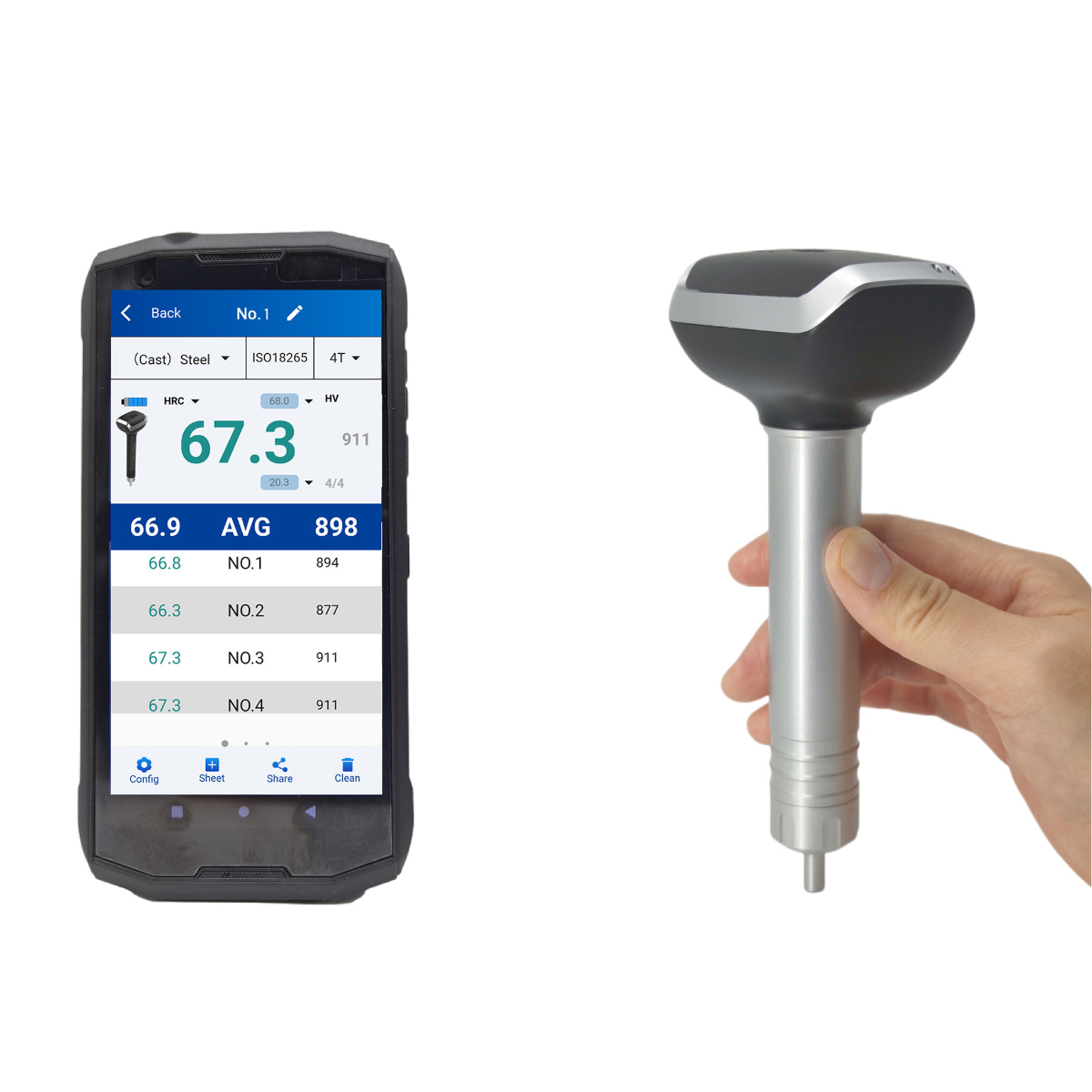

| Features | TIME®5631 ultrasonic hardness tester is an intelligent, non-destructive hardness testing device with minimal impact on the surface of the test piece.
It offers fast measurement speed and high accuracy, and is particularly suitable for testing locally hardened areas, small components, and thin parts. This effectively overcomes the limitations of conventional bench-top hardness testers, making it widely used in industrial applications. ▪ The system consists of a smartphone and a smart probe, communicating via Bluetooth |
| Application | Suitable for measuring belt and plate workpieces, mold hardened layers, blade hardened layers, tooth surface hardened layers, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife-edge positions, and welded parts |
| Technical Specification | |
| Measuring Range | 80–1400 HV; 76–618 HB; 20.3–68 HRC; 41–105 HRB |
| Loading Force (N) | 10 |
| Measuring Accuracy | ±4% (<500 HV); ±5% (500–800 HV); ±6% (>800 HV) |
| Repeatability | 8% (<250 HV); 6% (≥250 HV) |
| Indenter | Vickers diamond indenter |
| Power Supply | 2 × AA batteries; continuous operating time ≥ 24 h |
| Hardness Scales | HV, HB, HRC, HRB |
| Dimensions (mm) | 175 × 85 × 55 |
| Weight (g) | 220 |
| Standard Delivery | |
| Ultrasonic Hardness Probe | 1 |
| Industrial Smartphone | 1 |
| Standard Hardness Block | 1 |
| Probe Protective Cover | 1 |
| Instruction Manual | 1 |
| Warranty Card | 1 |
| TIME Certificate | 1 |
