āøDescription
| General Information | |

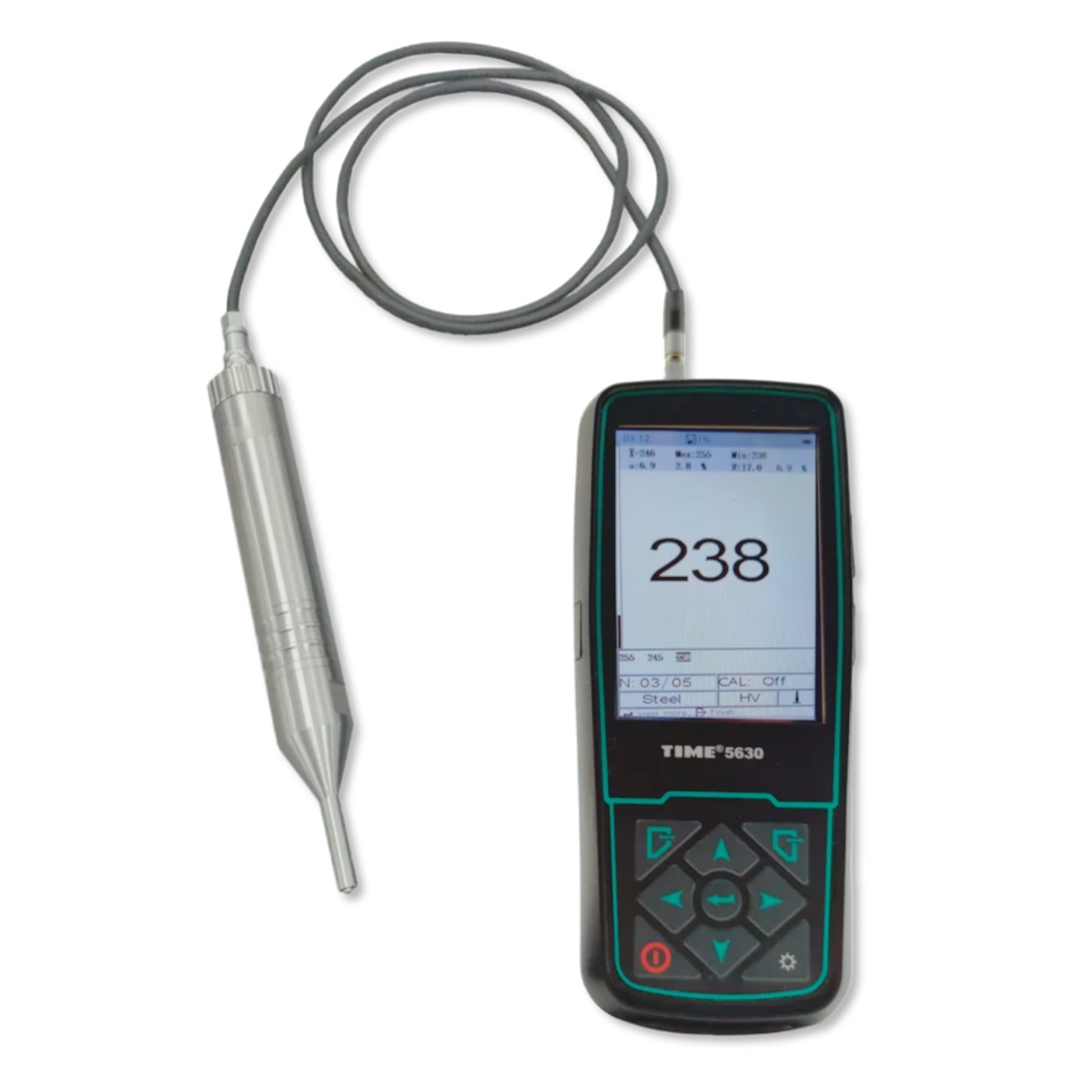

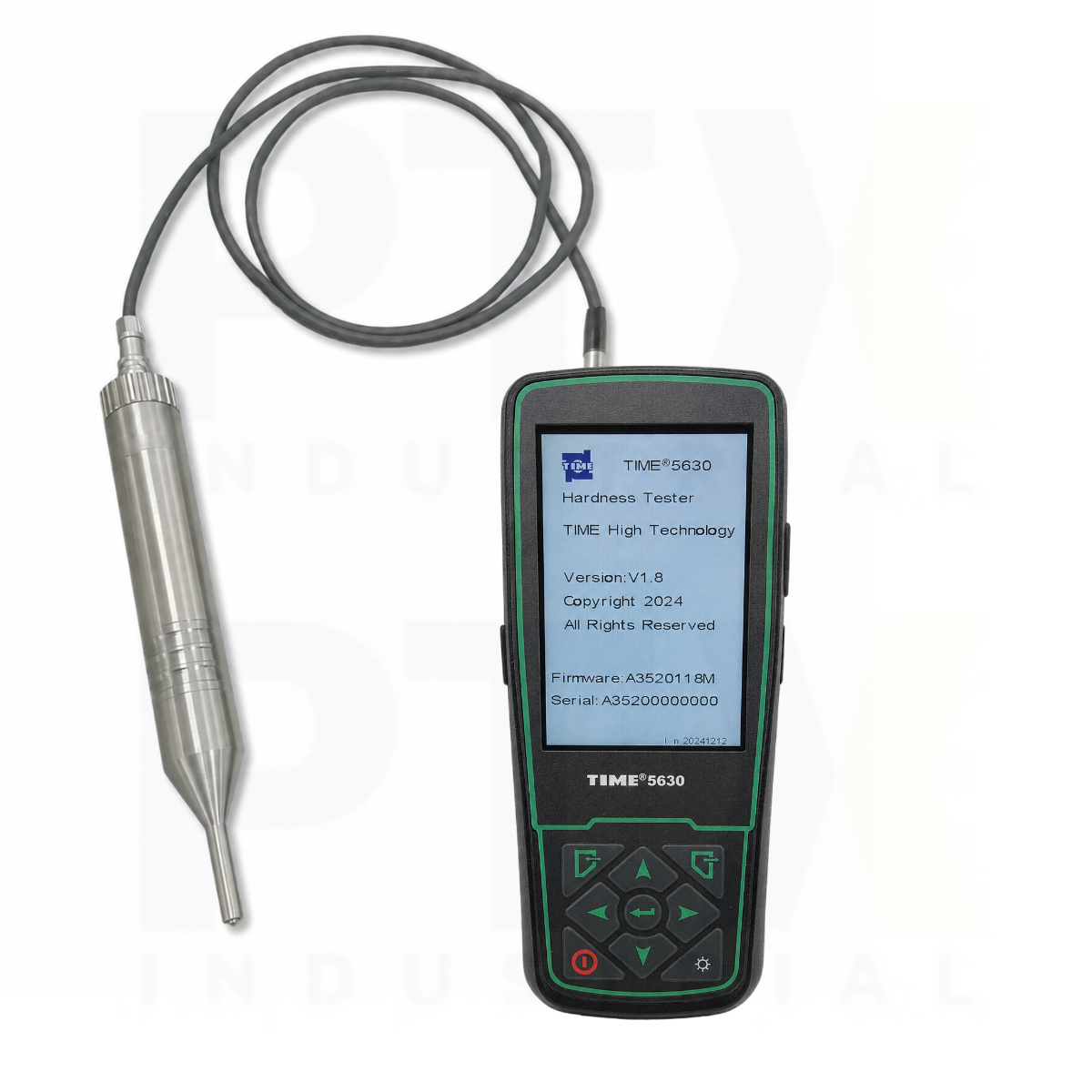

| Category | TIME 5630 Ultrasonic Hardness Tester (Manual Probe) |
| Model | TIME 5630 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | āŖ Nondestructive hardness tester suitable for testing hardened layers and thin workpieces āŖ 3.5-inch color LCD display āŖ Battery status indication with low-battery alarm āŖ Conversion of common hardness scales (HV, HB, HRC, HRB) āŖ Supports hardness value calibration and calibration deletion āŖ Material selection function; primarily for steel and cast steel, with extended capability for alloy tool steel, special cast iron, and non-ferrous metals after calibration with standard test block āŖ Large data storage with built-in 8 GB SD card āŖ 360Ā° measurement in any direction without compensation āŖ Displays maximum, minimum, average, standard deviation, number of measurements, and previous measurement values āŖ Upper and lower limit setting with alarm when limits are exceeded āŖ Rechargeable lithium-ion battery with continuous operating time over 30 hours āŖ Portable stand included to improve measurement accuracy |
| Application | Suitable for measuring strip and plate workpieces, mold hardened layers, blade hardened layers, tooth surface hardened layers, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife edges, and welded parts |
| Technical Specification | |
| Measuring Range | 80ā1400 HV; 76ā618 HB; 20.3ā68 HRC; 41ā105 HRB |
| Loading Force (N) | 10, 20, 50 |
| Indenter | Vickers diamond indenter |
| Hardness Resolution | 1 HV |
| Measuring Direction | 360Ā° |
| Hardness Scales | HV, HB, HRC, HRB |
| Dimensions | Main unit: 170 Ć 75 Ć 40 mm; probe: Ć23 Ć 170 mm |
| Weight | Main unit: approx. 232 g; probe: approx. 252 g |
| Standard Delivery | |
| Main Unit | 1 |
| 20 N Manual Probe | 1 |
| Standard Test Block | 1 |
| V-shaped Base | 1 |
| Probe Cable | 1 |
| Charger | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
