▸Description
| General Information | |

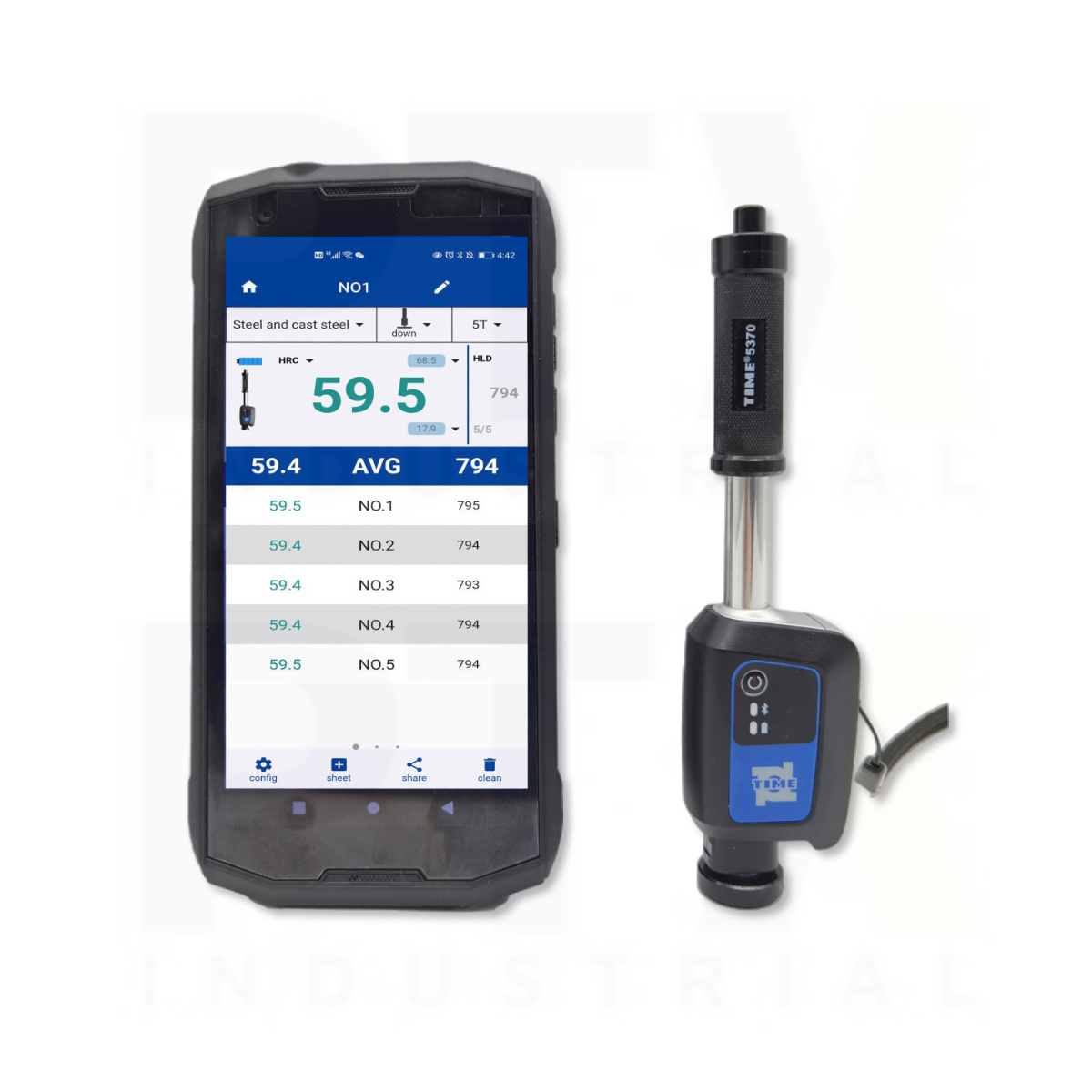

| Category | TIME 5370 Leeb Hardness Tester |
| Model | TIME 5370 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Smart probe connects wirelessly to a mobile phone (currently Android only) via Bluetooth for Leeb hardness testing ▪ Measured hardness values are transmitted in real time to the mobile app “TIME Smart Test” ▪ Compact and portable design with lanyard for easy handling ▪ Built-in rechargeable lithium battery with wireless charging capability ▪ IP54 dustproof and waterproof rating, suitable for harsh environments ▪ Automatic identification of impact direction ▪ Upper and lower hardness limits can be preset with alarm notification for batch testing ▪ Custom material function allows users to generate dedicated hardness conversion tables via comparison testing ▪ Measurement records support additional data such as images, videos, and location information ▪ Advanced data processing features including cloud storage, customized worksheets, real-time data sharing, and report generation ▪ Remote software upgrade capability ▪ Compatible with industrial smartphones and can be integrated with the TIME IoT platform for extended functionality |
| Technical Specification | |
| Measuring Range | 170–960 HLD |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS |
| Measuring Direction | 360° |
| Tolerance | ±6 HLD (at 760 ± 30 HLD) |
| Repeatability | 6 HLD (at 760 ± 30 HLD) |
| Interface | Bluetooth 4.2 |
| Continuous Operating Time (h) | 8 |
| Power Supply | 5 V / 1 A |
| Humidity | ≤ 90% |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 158 × 40 × 25 |
| Weight (g) | 85 |
| Standard Delivery | |
| Smart Probe | 1 |
| Support Ring | 1 |
| Cleaning Brush | 1 |
| Wireless Charger | 1 |
| Lanyard | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
