āøDescription
| General Information | |

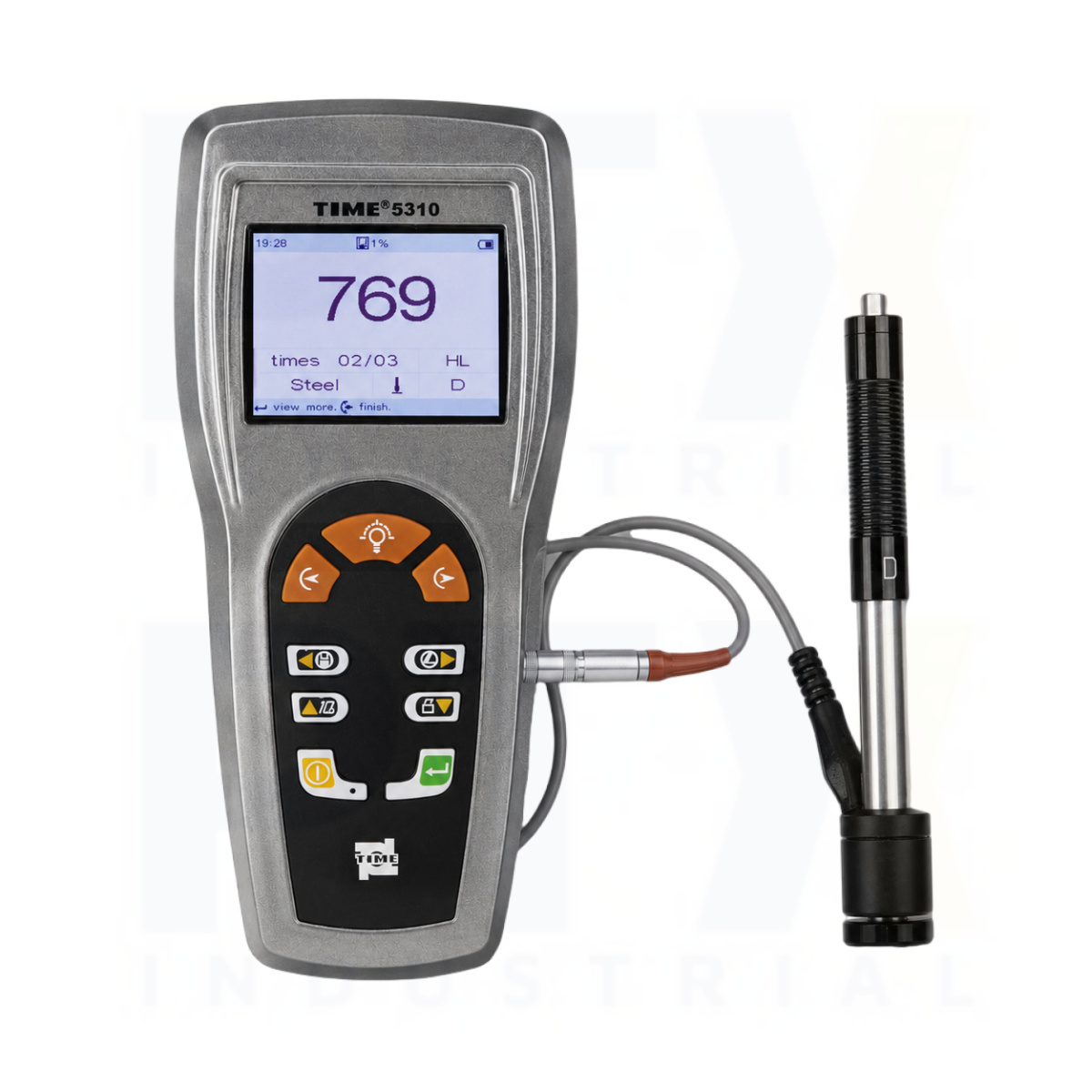

| Category | TIME 5310 Portable Leeb Hardness Tester |
| Model | TIME 5310 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | āŖ Advanced micro-electronic technology for wide-range metal hardness testing āŖ Simple menu for easy and convenient operation āŖ Conversion of common hardness scales (HL, HV, HB, HRC, HRB, HS) and tensile strength āŖ Supports 7 types of optional impact devices with automatic recognition; standard D-type included āŖ 2.8-inch TFT LCD (240 Ć 320), 262K color display with adjustable backlight showing key values and information āŖ Data storage capacity of 1000 groups āŖ Custom material management function āŖ Upper and lower limit setting with audible alarm āŖ Data transfer to PC via USB in Word and Excel formats, with powerful PC software included āŖ Battery status indication with long-life rechargeable Li battery (no memory effect) āŖ Optional removable printer for direct printing of test results āŖ Built-in conversion table with direct HB value reading when using D/DC impact device āŖ Integrated thermal printer |
| Technical Specification | |
| Measuring Range | 170ā960 HLD |
| Tolerance | Ā±6 HLD (at 790 Ā± 40 HLD) |
| Repeatability | 6 HLD (at 790 Ā± 40 HLD) |
| Measuring Direction | 360Ā° |
| Hardness Scales | HL, HB, HRB, HRC, HV, HS |
| Display | 2.8-inch TFT LCD, 240 Ć 320, 262K color |
| Data Storage | 1000 groups |
| Upper/Lower Limits | 170ā960 HLD |
| Working Voltage | 3.7 V |
| Charging Time (h) | 6 |
| Power Supply | 12 V / 500 mA |
| Continuous Working Time (h) | 20 |
| Interface | USB 2.0 |
| Standard Delivery | |
| Main Unit | 1 |
| Impact Device Type D | 1 |
| Test Block (HLD) | 1 |
| Small Support Ring | 1 |
| Charger | 1 |
| Cleaning Brush | 1 |
| Thermal Printer Paper | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
