āøDescription

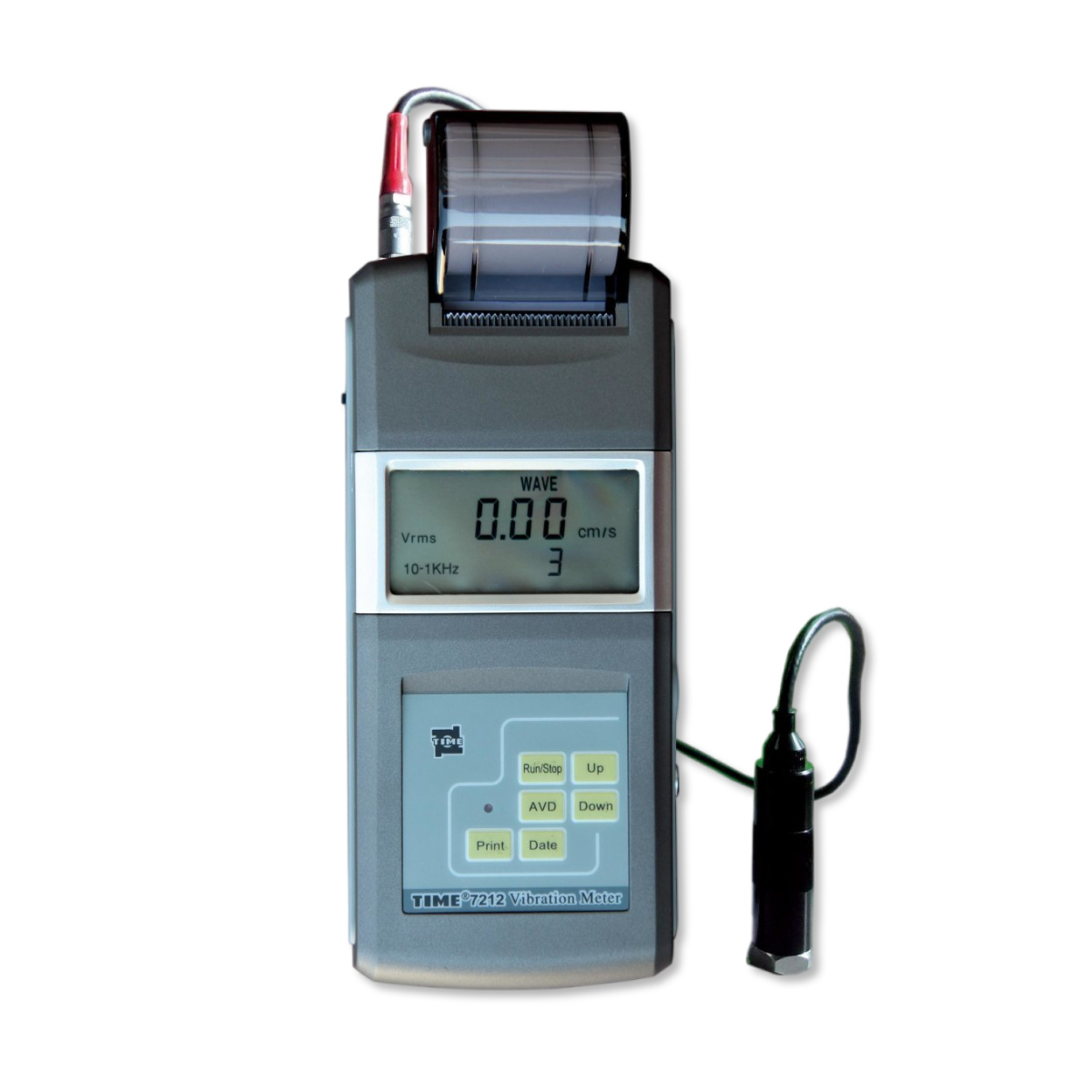

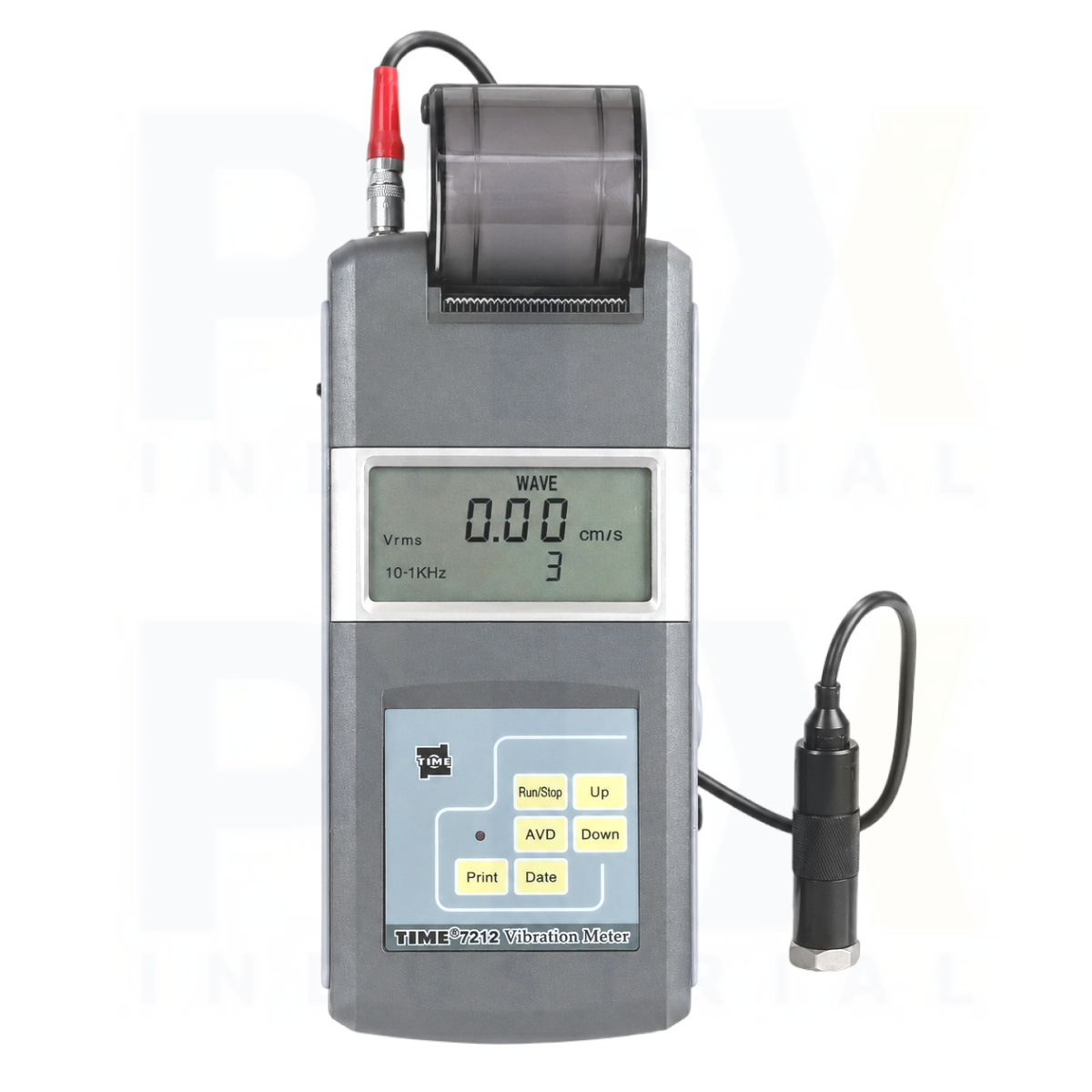

TIME 7212 Vibration Tester is a professional handheld vibration measurement instrument designed for predictive maintenance, machinery diagnostics, and condition monitoring of rotating equipment. Suitable for motors, pumps, fans, compressors, bearings, and machine tools, it enables rapid identification of imbalance, misalignment, looseness, bearing wear, and other mechanical faults before costly failures occur.
The instrument measures the three key vibration parameters:
- Acceleration: 0.1ā199.9 m/sĀ² (Peak)
- Velocity: 0.01ā19.99 cm/s (RMS)
- Displacement: 0.001ā1.999 mm (Peak-to-Peak)
With storage for up to 100 measurement groups, configurable high and low alarm limits, integrated date and time functions, and a built-in thermal printer for instant reporting, the TIME 7212 provides an efficient solution for maintenance engineers and reliability professionals.
| General Information | |
| Category | TIME 7212 Vibration Analyzer |
| Model | TIME 7212 |
| Manufacturer (OEM) | āŖ Fast fault detection for motors, fans, pumps, compressors, and machine tools āŖ Convenient shortcut key combinations for calibration mode āŖ Memory capacity of up to 100 data groups āŖ Upper and lower limit settings with audible alarm āŖ Integrated printer for printing current measurement readings āŖ Built-in time and date setting function āŖ High sensitivity with stable measurement performance āŖ Low battery indication |
| Technical Specification | |
| Application Field | Motors, compressors, bearings, and other rotating machinery |
| Measuring Parameters | Acceleration (m/sĀ²), Velocity (cm/s), Displacement (mm) |
| Display Resolution | Acceleration: 0.1 m/sĀ²; Velocity: 0.01 cm/s; Displacement: 0.001 mm |
| Tolerance | ā¤ Ā±5% |
| Testing Range | Acceleration: 0.1ā199.9 m/sĀ² (peak); Velocity: 0.01ā19.99 cm/s; Displacement: 0.001ā1.999 mm (peak-to-peak) |
| Data Memory | 100 groups |
| Voltage | 6 V |
| Charging Time | ā¤ 132 minutes |
| Power Supply | Input: 220ā240 V~, 50 Hz; Output: 12 V DC, 600 mA |
| Continuous Working Time | > 16 hours |
| Operating Temperature (Ā°C) | 0ā40 |
| Humidity | ā¤ 90% RH |
| Dimensions (mm) | 230 Ć 84 Ć 33 |
| Weight (g) | 600 |
| Standard Delivery | |
| Main Unit | 1 |
| Sensor | 1 |
| Magnetic Base | 1 |
| Charger | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
