▸Description

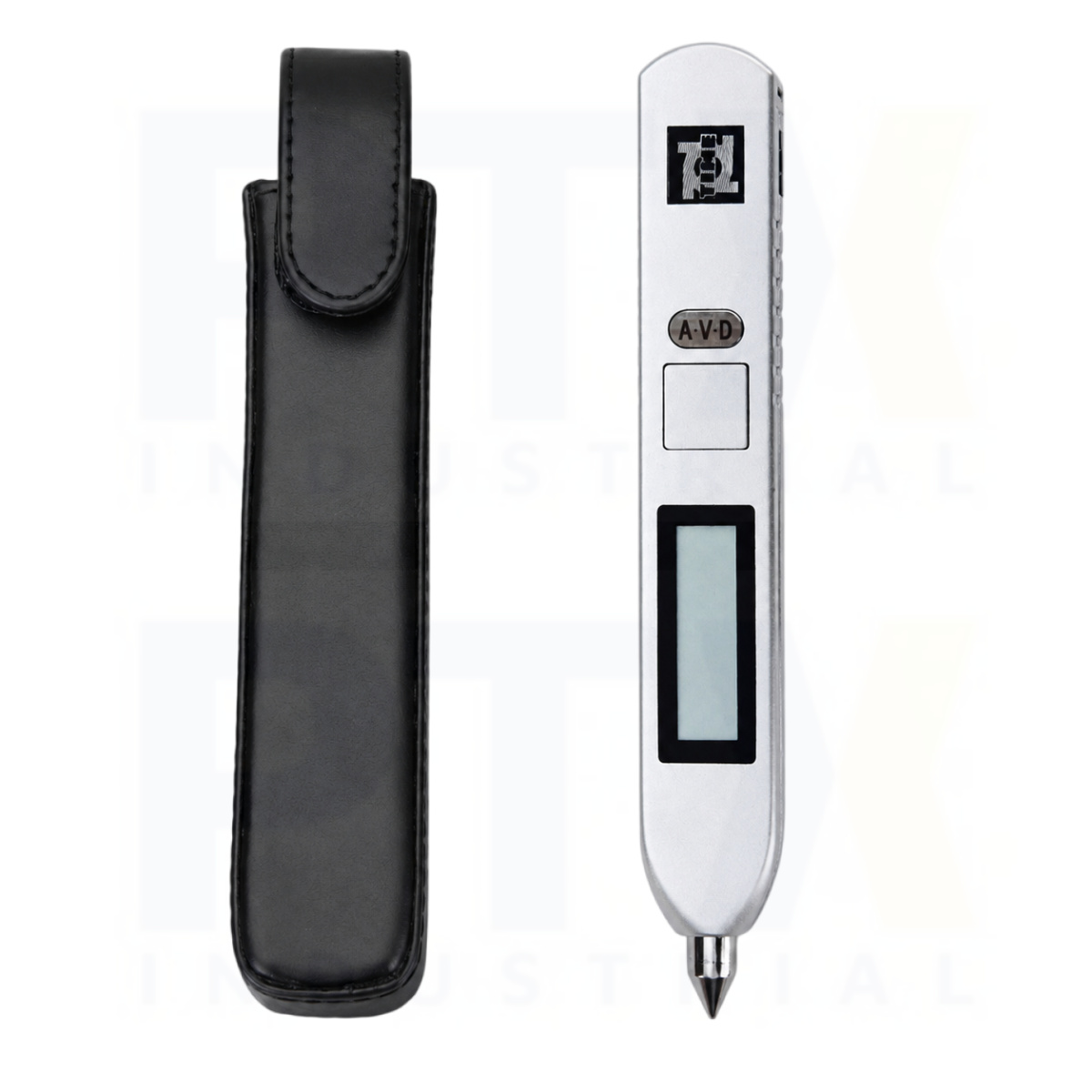

TIME 7126 Vibration Tester is a versatile handheld vibration measurement instrument designed for fast and reliable machine condition monitoring. Combining acceleration, velocity, and displacement measurement in a single compact device, it provides maintenance technicians and reliability engineers with the key vibration parameters required to assess the health of rotating machinery.
The instrument measures acceleration up to 199.9 m/s², velocity up to 199.9 mm/s RMS, and displacement up to 1.999 mm peak-to-peak, enabling effective detection of common faults such as imbalance, misalignment, bearing deterioration, looseness, and gear defects. Its lightweight pen-style design allows convenient one-handed operation for routine inspections of motors, pumps, fans, compressors, gearboxes, and machine tools.
| General Information | |
| Category | Vibration Pen Tester (Acceleration, Velocity & Displacement) |
| Model | TIME 7126 |
| Manufacturer (OEM) | ▪ Prompt testing of vibration on workshop machinery and rapid fault detection for motors, fans, pumps, compressors, and machine tools to help prevent mechanical failure ▪ Quick checking of unbalance, misalignment, bearings, and gears ▪ Lightweight and compact design ▪ Low power consumption with continuous operation for more than 4.5 hours ▪ Automatic power-off function ▪ TIME 7126 for testing of acceleration, velocity and displacement |
| Technical Specification | |
| Parameters | Acceleration, Velocity, Displacement |
| Testing Range | Acceleration: 0.01–199.9 m/s² (peak); Velocity: 0.01–199.9 mm/s (RMS); Displacement: 0.001–1.999 mm (peak-to-peak) |
| Frequency Range | Acceleration: 10 Hz–1 kHz; Velocity: 10 Hz–1 kHz; Displacement: 10–500 Hz |
| Relative Error | Indeterminacy of sensitivity ≤2%; Amplitude linear error ±5%; Frequency response error ±5% |
| Display | 3½ digit LCD |
| Power Supply | Button batteries (LR44 or SR44) |
| Battery Life | Approx. 7.5–10 hours continuous operation |
| Operating Temperature (°C) | 0–40 |
| Humidity | < 85% |
| Dimensions (mm) | 150 × 22 × 18 |
| Weight (g) | 55 (including batteries) |
| Standard Delivery | |
| Main Unit | 1 |
| Protection Pocket | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
