▸Description

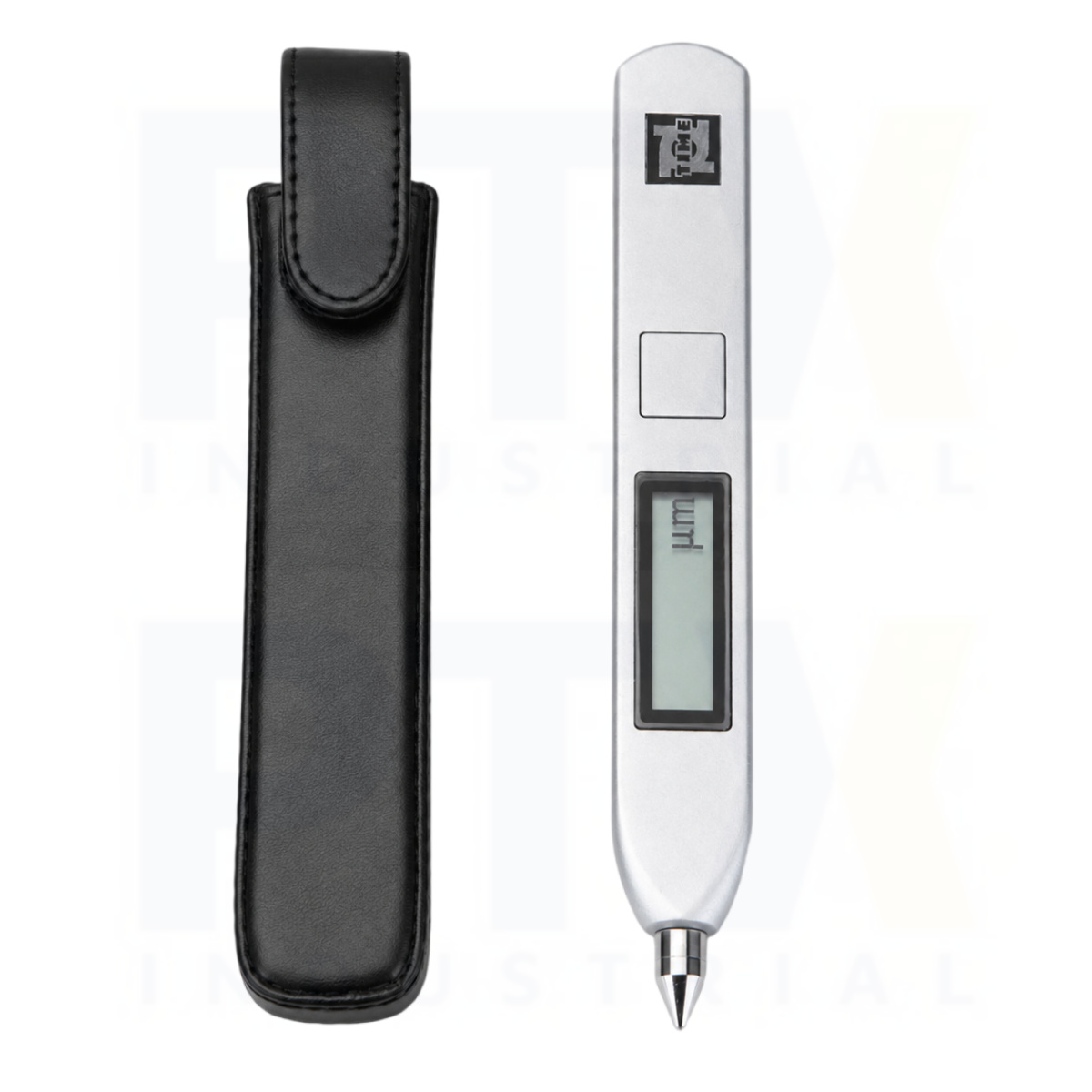

TIME 7122 Vibration Displacement Tester is a lightweight and portable vibration measurement instrument designed for quick assessment of machine condition through peak-to-peak vibration displacement measurement. It enables maintenance personnel to identify common machinery faults such as imbalance, misalignment, bearing deterioration, looseness, and gear defects before they develop into major equipment failures.
With a measuring range of 0.01–1.999 mm displacement (peak-to-peak) and a frequency range of 10–500 Hz, the TIME 7122 is suitable for routine inspections of motors, pumps, fans, compressors, machine tools, and other rotating equipment. Its compact pen-style design allows convenient one-handed operation for rapid maintenance checks in workshops and industrial environments.
| General Information | |
| Category | TIME 7122 Vibration Displacement Tester |
| Model | TIME 7122 |
| Manufacturer (OEM) | ▪ Prompt testing of vibration on workshop machinery and rapid fault detection for motors, fans, pumps, compressors, and machine tools to help prevent mechanical failure ▪ Quick checking of unbalance, misalignment, bearings, and gears ▪ Lightweight and compact design ▪ Low power consumption with continuous operation for more than 4.5 hours ▪ Automatic power-off function ▪ TIME 7122: Designed for displacement measurement |
| Technical Specification | |
| Parameters | Displacement |
| Testing Range | Displacement: 0.01–1.999 mm (peak-to-peak) |
| Frequency Range | Displacement: 10–500 Hz |
| Relative Error | Indeterminacy of sensitivity ≤2%; Amplitude linear error ±5%; Frequency response error ±5% |
| Display | 3½ digit LCD |
| Power Supply | Button batteries (LR44 or SR44) |
| Battery Life | Approx. 7.5–10 hours continuous operation |
| Operating Temperature (°C) | 0–40 |
| Humidity | < 85% |
| Dimensions (mm) | 150 × 22 × 18 |
| Weight (g) | 55 (including batteries) |
| Standard Delivery | |
| Main Unit | 1 |
| Protection Pocket | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
