āøDescription

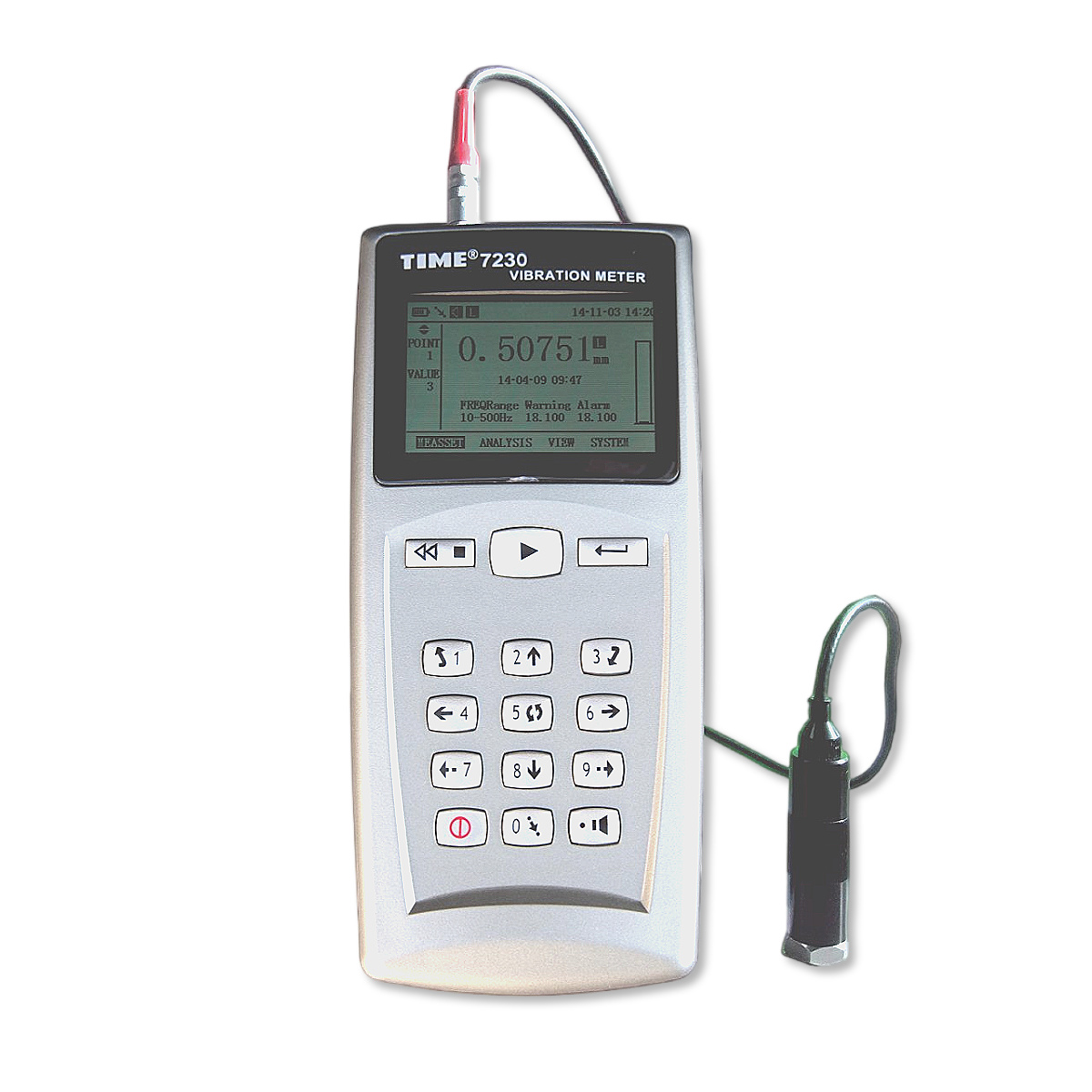

TIME 7230 Vibration Analyzer is a professional vibration analysis instrument designed for advanced machinery condition monitoring and fault diagnosis. Unlike basic vibration meters that only display measurement values, the TIME 7230 provides real-time FFT spectrum analysis, enabling maintenance engineers to identify specific fault frequencies associated with imbalance, misalignment, bearing defects, looseness, resonance, and gear-related problems.
The instrument measures:
- Acceleration
- Velocity
- Displacement
and includes both high-sensitivity and low-sensitivity probes for a wide range of machinery applications.
Its large memory capacity stores up to 10,000 measurement records and 100 vibration spectra, allowing long-term monitoring and trend analysis. Configurable alarm thresholds automatically trigger spectrum analysis when abnormal vibration levels are detected, helping maintenance teams identify developing faults before costly failures occur.
| General Information | |

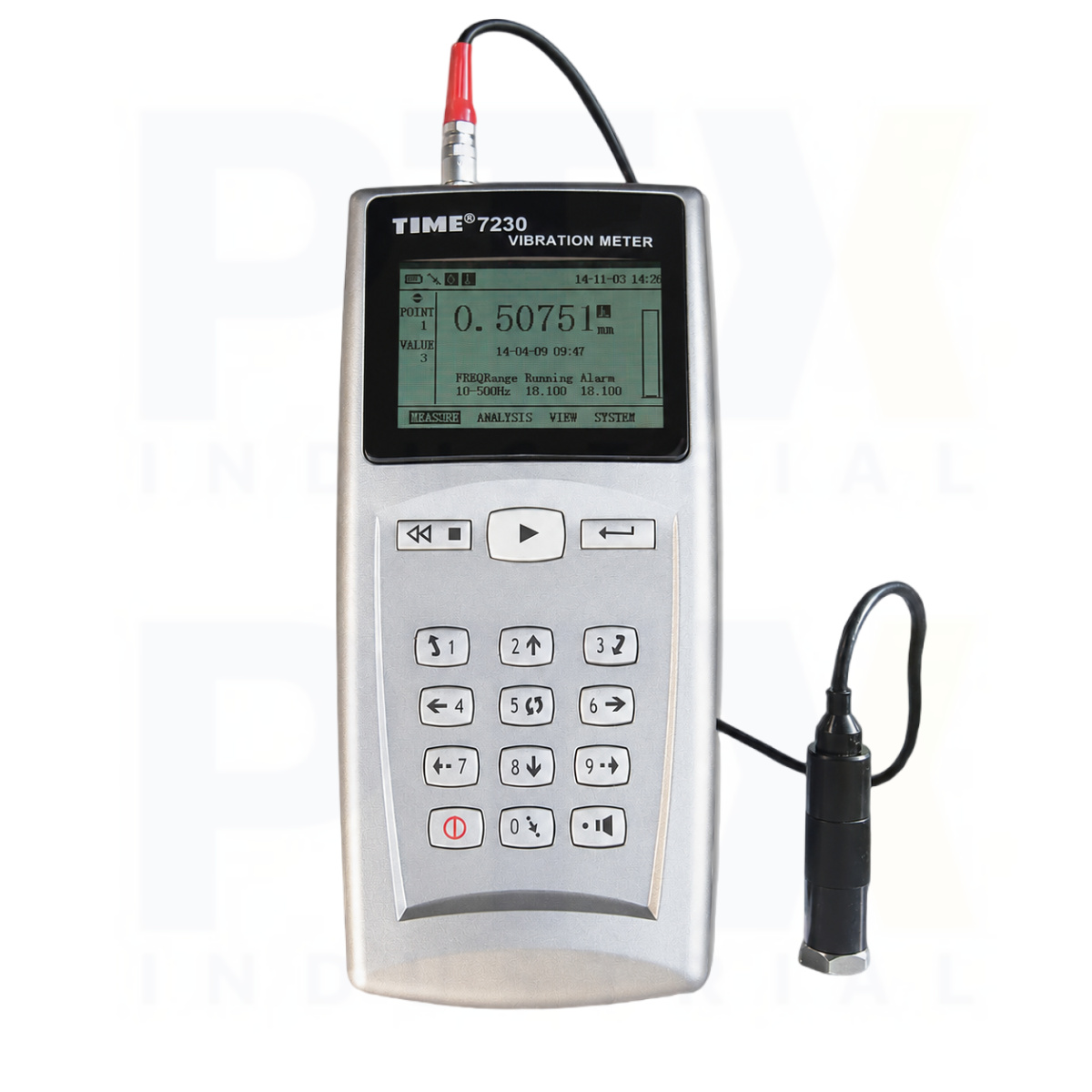

| Category | TIME 7230 Vibration Analyzer with FFT Spectrum Analysis |
| Model | TIME 7230 |
| Manufacturer (OEM) | āŖ Two display modes: digital value mode and spectrum mode āŖ Large memory capacity: up to 100 Ć 100 measurement results (100 test points, each storing 100 data sets) and 100 spectrograms (one per test point) āŖ Real-time spectrogram display āŖ Histogram generation based on preset alarm thresholds āŖ Upper and lower limit settings with audible alarm; automatically switches to spectrum analysis mode when limits are exceeded āŖ PC connectivity with advanced software for detailed analysis āŖ 320 Ć 200 dot matrix LCD display with backlight āŖ TIME 7230: equipped with both low and high sensitivity probes āŖ Complies with ISO 2954 standard |
| Technical Specification | |
| Probe Type | Low & High Sensitivity Probes |
| Measuring Range (Low Probe) | Acceleration: 1ā392 m/sĀ² (peak); Velocity: 0.1ā80 cm/s (RMS); Displacement: 0.01ā18.1 mm (peak-to-peak) |
| Measuring Range (High Probe) | Acceleration: 0.1ā20 m/sĀ² (peak); Velocity: 0.01ā4 cm/s (RMS); Displacement: 0.001ā0.8 mm (peak-to-peak) |
| Frequency Range (Acceleration) | 10 Hzā200 Hz / 500 Hz / 1 kHz / 10 kHz |
| Frequency Range (Velocity) | 10 Hzā200 Hz / 500 Hz / 1 kHz |
| Frequency Range (Displacement) | 10 Hzā200 Hz / 500 Hz |
| Accuracy | Ā±5% |
| Power Supply | Li battery (approx. 20 hours without backlight) |
| Dimensions (mm) | 171 Ć 78.5 Ć 28 |
| Weight (g) | 230 |
| Standard Delivery | |
| Main Unit | 1 |
| Protection Pocket | 1 |
| Low Sensitivity Probe | 1 |
| High Sensitivity Probe | 1 |
| Power Adapter | 1 |
| Magnetic Base | 1 |
