▸Description
| General Information | |

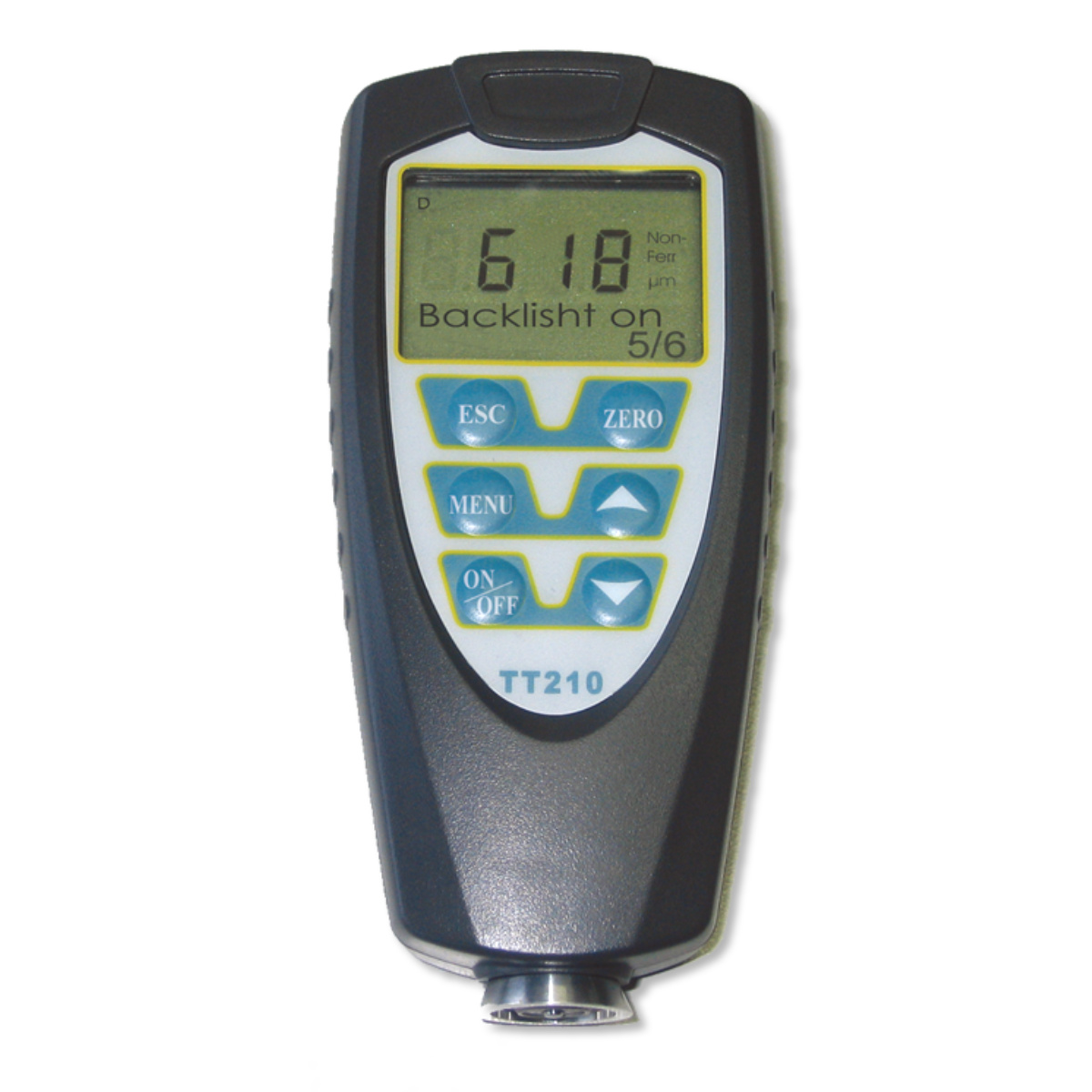

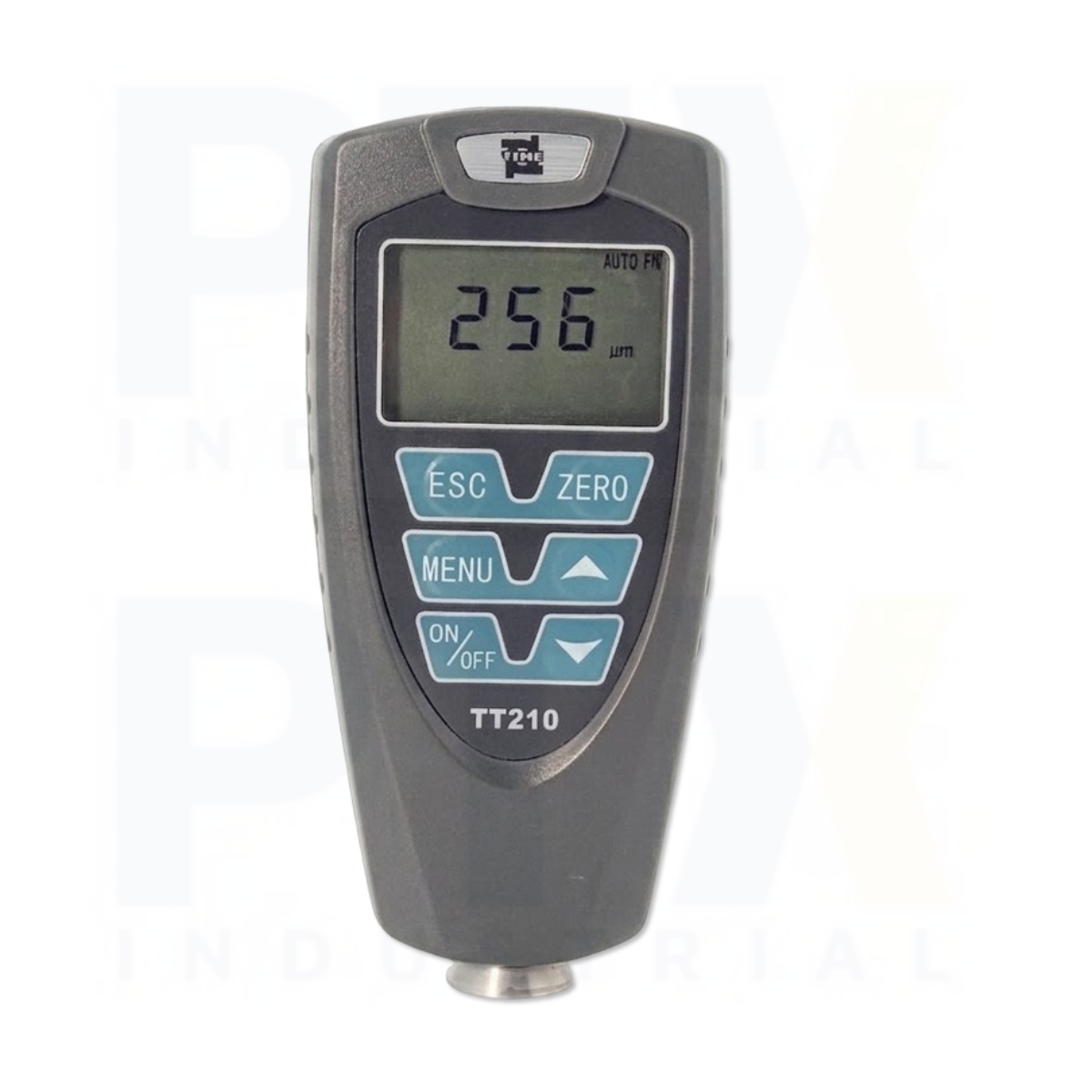

| Category | TT210 Coating Thickness Gauge F/N |
| Model | TT210 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TT210 supports dual measuring methods: magnetic induction (F) and eddy current (N) ▪ TT210 offers both continuous and single measurement modes ▪ Easy zero-point calibration ▪ High-speed data acquisition, holds 600 readings (100 per group). ▪ Automatic power-off function ▪ Easy unit conversion between mm and inch |
| Technical Specification | |
| TT210 (F Probe) | |
| Probe Type | F |
| Measuring Method | Magnetic induction |
| Measuring Range | 0–1250 µm |
| Tolerance (Zero Calibration) | ± (3% H + 1) µm |
| Tolerance (Two-point Calibration) | ± [(1–3)% H + 1] µm |
| Min. Curvature Radius (mm) | Convex: 1.5 |
| Min. Testing Area (mm) | Ø7 |
| Critical Substrate Thickness (mm) | 0.5 |
| Power Supply | 2 × AAA batteries |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 110 × 50 × 23 |
| Weight (g) | 100 |
| TT210 (N Probe) | |
| Probe Type | N |
| Measuring Method | Eddy current |
| Measuring Range | 0–1250 µm; 0–40 µm (for chrome plating on copper) |
| Tolerance (Zero Calibration) | ± (3% H + 1.5) µm |
| Tolerance (Two-point Calibration) | ± [(1–3)% H + 1.5] µm |
| Min. Curvature Radius (mm) | Convex: 3 |
| Min. Testing Area (mm) | Ø5 |
| Critical Substrate Thickness (mm) | 0.3 |
| Power Supply | 2 × AAA batteries |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 110 × 50 × 23 |
| Weight (g) | 100 |
| Standard Delivery | |
| Main Unit | 1 |
| Substrate | 1 |
| Calibration Foil (TT210) | 1 |
| Waist Pack (for Main Unit) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
