▸Description

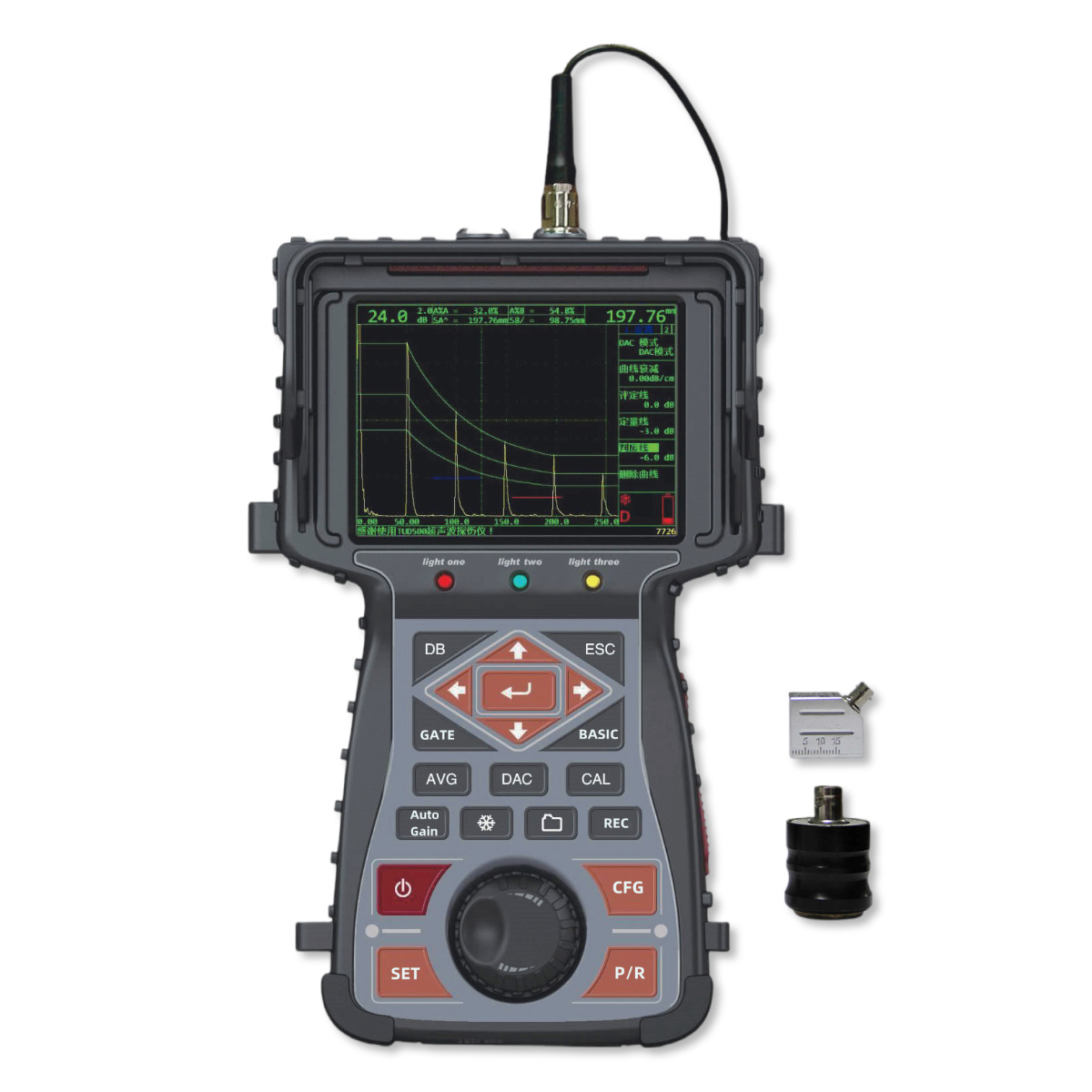

TUD290 Ultrasonic Flaw Detector is a high-performance portable ultrasonic flaw detector engineered for precision Non-Destructive Testing (NDT) applications. Featuring a vibrant 640 × 480 VGA colour display with a high-speed 60 Hz refresh rate, it delivers clear, real-time waveform visualization for accurate defect evaluation. Equipped with an advanced square-wave pulser, 110 dB gain range, and comprehensive inspection functions including DAC curve analysis, pulse-echo, dual-element, and through-transmission testing modes, the TUD290 provides reliable detection of cracks, inclusions, porosity, laminations, and weld defects. Designed for demanding industrial environments, it is an ideal solution for weld inspection, casting evaluation, pressure vessel testing, structural integrity assessment, and general quality assurance applications.
Technical Specifications
| Category | Parameter | Specification |
| Measurement | Scanning Range | 2.5 mm – 9999 mm |
| Scanning Resolution | 0.1mm (<100mm) / 1mm (>100mm) | |
| Sound Speed | 600 m/s – 9999 m/s | |
| Accuracy | Horizontal Linearity | ≤ 0.1 |
| Vertical Linearity | ≤ 2.0 | |
| Sensitivity Leavings | ≥ 62 dB | |
| Pulser & Receiver | Pulser Type | Square Wave (with tuning) |
| Gain Range | 0 dB – 110 dB | |
| Bandwidth | 0.1 MHz – 15 MHz | |
| Damping | 50Ω, 100Ω, 200Ω, 500Ω | |
| Functionality | Test Modes | Pulse-echo, Dual, Through Transmission |
| Rectification | Positive/Negative Half-wave, Full wave, RF | |
| Reject | Linear, 0–80% of full screen | |
| Gate Measurement | Amplitude, beam path, depth, projection | |
| Interface | Display | 640×480 VGA Color TFT (60Hz) |
| Connection | USB / RS232 | |
| Units | Metric / Imperial (Inch) | |
| Power | Battery | 2 × 3.7V 5000mAh (8h charging time) |
| AC Requirements | Input: 220-240V AC / Output: 9V DC | |
| Physical | Dimensions | 300 mm × 180 mm × 57 mm |
| Weight | 2000 g | |
| Environment | -10°C to 40°C / 20% to 90% RH |
