▸Description
| General Information | |

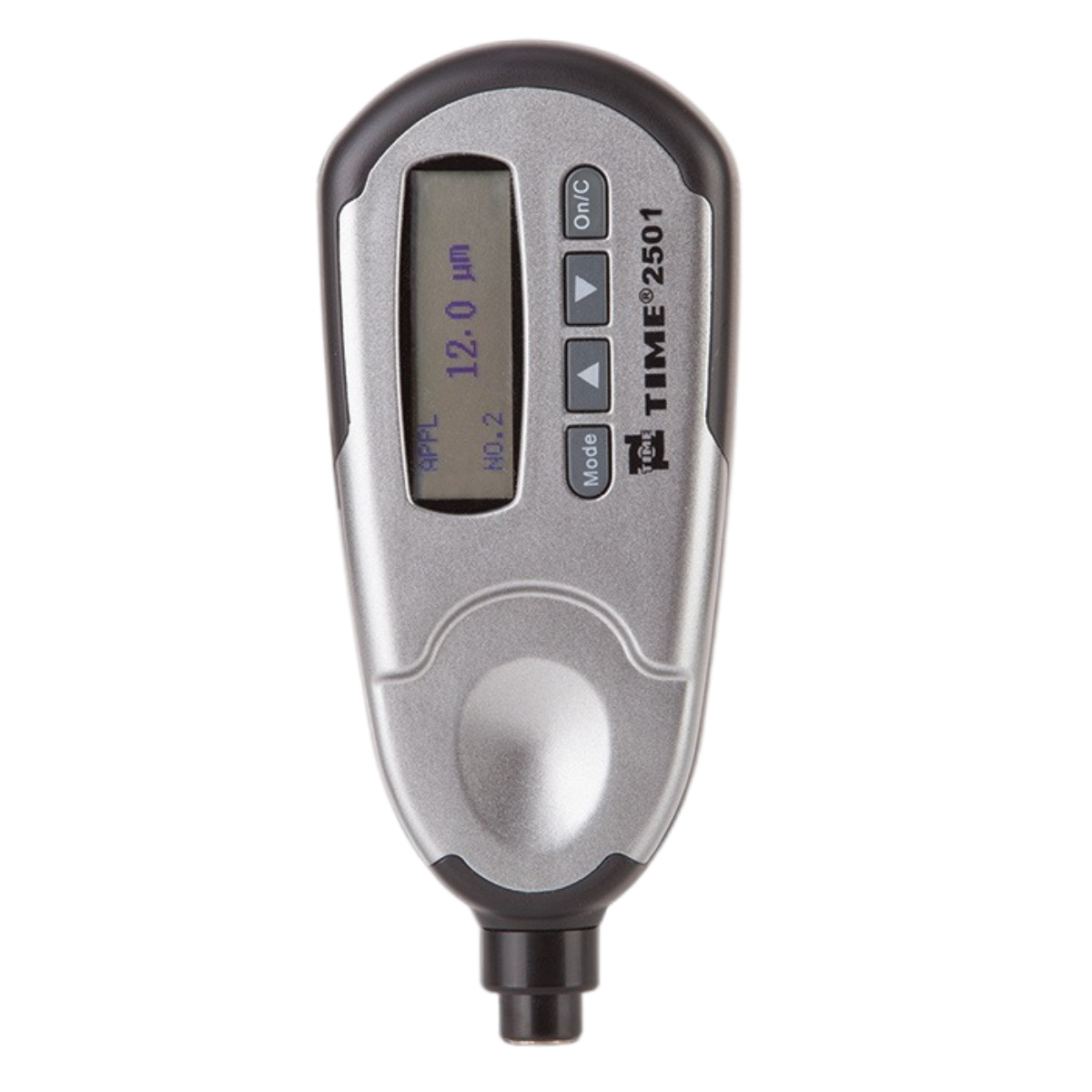

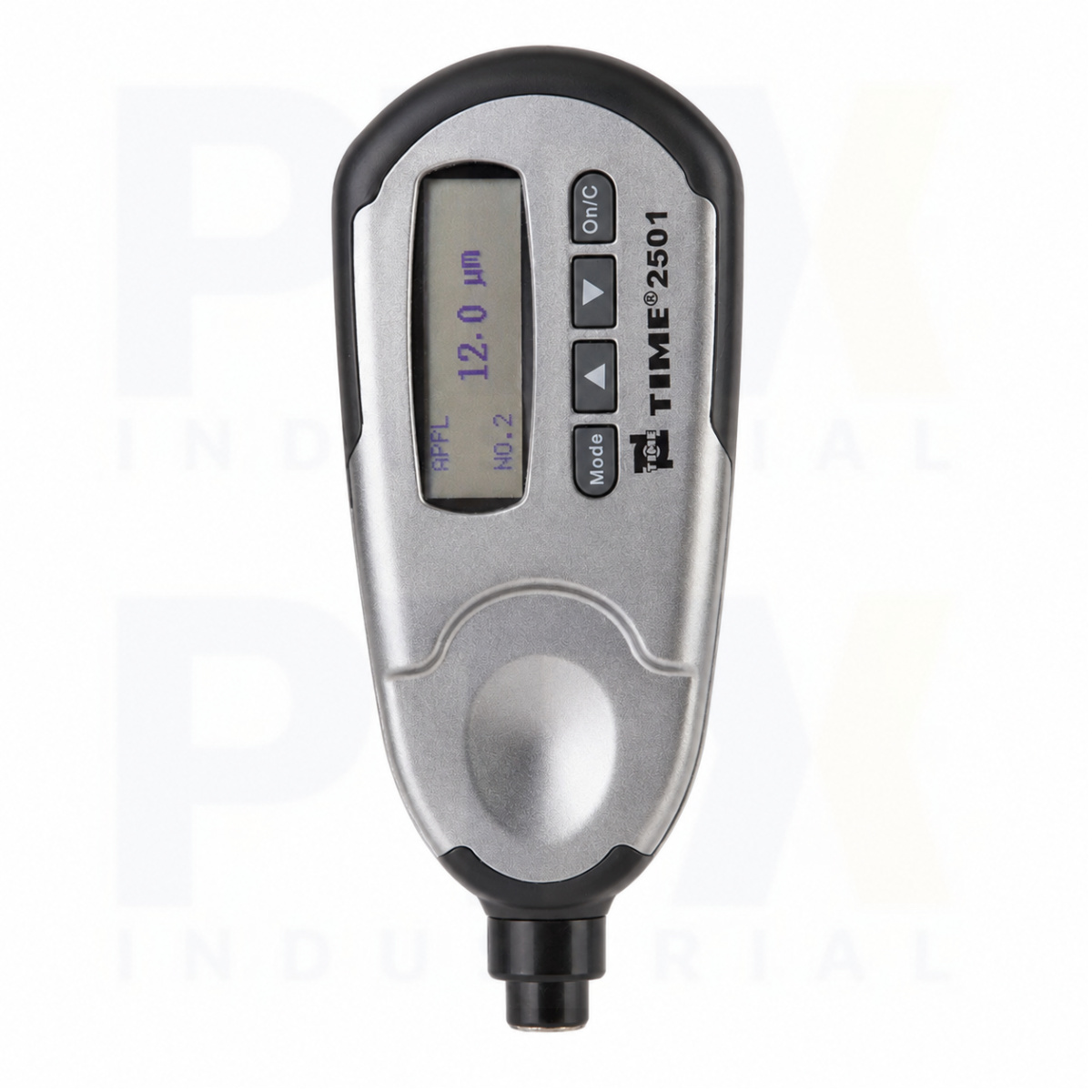

| Category | TIME 2501 Coating Thickness Gauge |
| Model | TIME 2501 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME2501 is equipped with Probe N, using the eddy current principle to measure the thickness of insulating coatings (e.g., enamel, rubber, paint, plastics) on non-magnetic substrates (e.g., copper, aluminum, zinc, tin) ▪ Supports zero-point calibration and two-point calibration for improved measurement accuracy ▪ Two working modes: DIRECT and BATCH; two measuring modes: CONTINUOUS and SINGLE ▪ Statistical functions include mean, maximum, minimum, number of tests, and standard deviation ▪ Memory capacity of up to 500 data points ▪ Supports deletion of current data, calibration data, limit data, or all stored data ▪ Low battery indication and error alarm ▪ Audible buzzer indication during operation ▪ Backlit display for improved visibility ▪ Automatic or manual power-off function |
| Technical Specification | |
| Measuring Method | Eddy current (N) |
| Measuring Range | 0–1250 µm |
| Display Resolution | 0.1 µm |
| Tolerance (Zero Calibration) | ± (3% H + 1.5) |
| Tolerance (Two-point Calibration) | ± [(1%–3%) H + 1.5] |
| Min. Curvature Radius (mm) | Convex: 3; Concave: 10 |
| Min. Testing Area (mm) | Ø5 |
| Critical Substrate Thickness (mm) | 0.3 |
| Power Supply | 2 × AAA 1.5 V batteries |
| Operating Conditions | 0–40 °C; humidity 20–90% |
| Dimensions (mm) | 145 × 60 × 28 |
| Weight (g) | 132 |
