āøDescription
| General Information | |

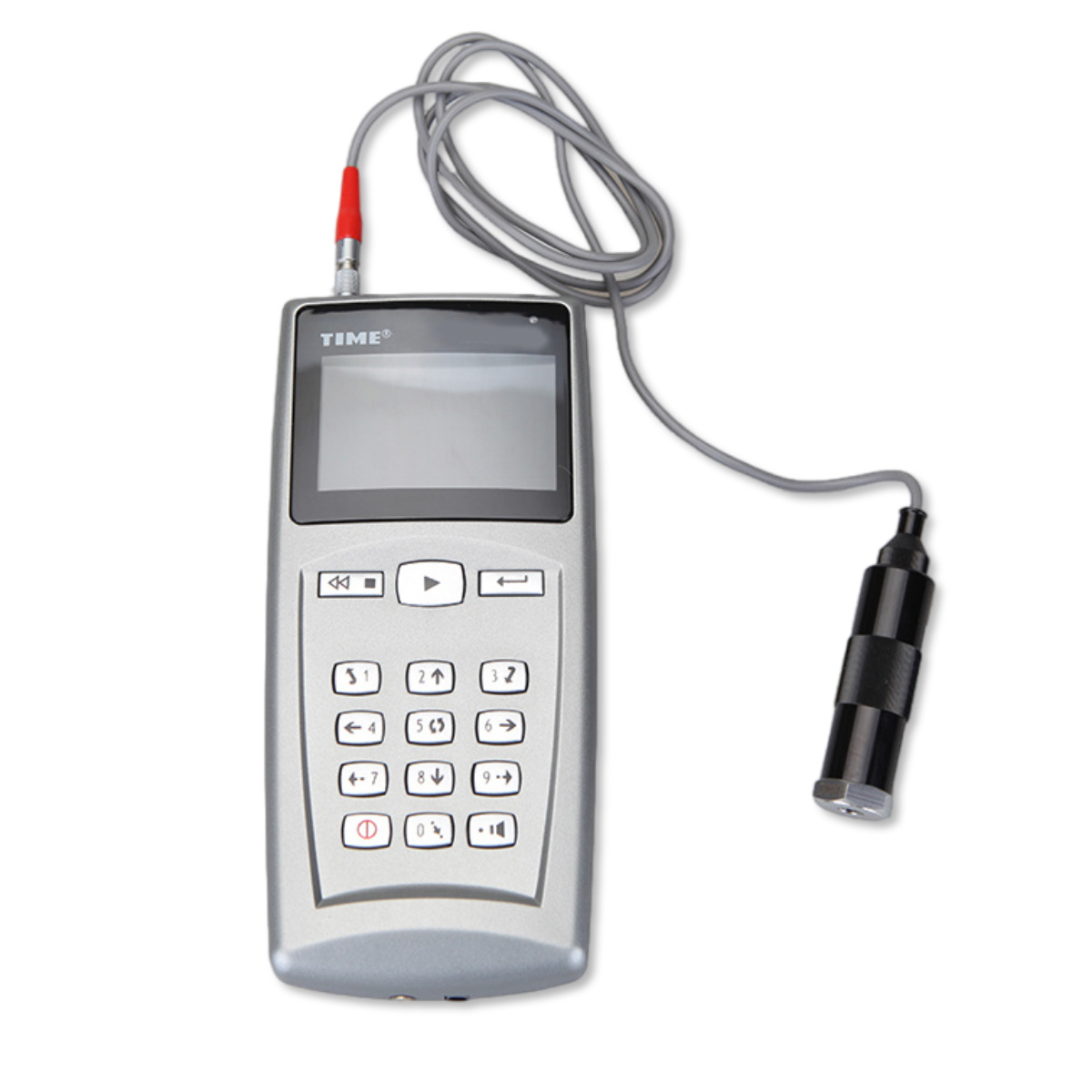

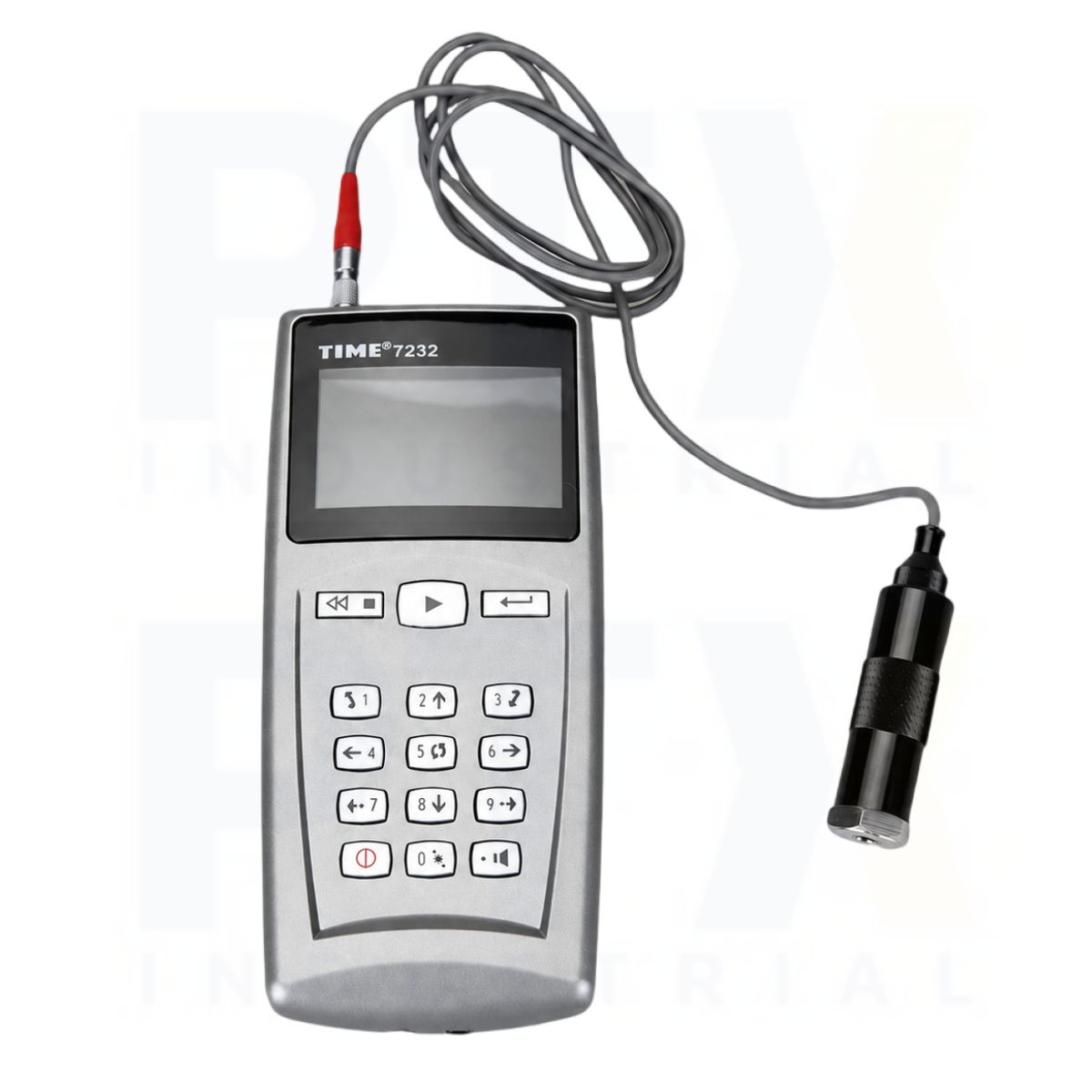

| Category | TIME 7232 Vibration Analyzer (High Sensitivity) |
| Model | TIME 7232 |
| Manufacturer (OEM) | āŖ Two display modes: digital value mode and spectrum mode āŖ Large memory capacity: up to 100 Ć 100 measurement results (100 test points, each storing 100 data sets) and 100 spectrograms (one per test point) āŖ Real-time spectrogram display āŖ Histogram generation based on preset alarm thresholds āŖ Upper and lower limit settings with audible alarm; automatically switches to spectrum analysis mode when limits are exceeded āŖ PC connectivity with advanced software for detailed analysis āŖ 320 Ć 200 dot matrix LCD display with backlight āŖ TIMEĀ®7232: equipped with high sensitivity probe, suitable for weak vibration testing āŖ Complies with ISO 2954 standard |
| Technical Specification | |
| Probe Type | High Sensitivity Probe |
| Measuring Range | Acceleration: 0.1ā20 m/sĀ² (peak); Velocity: 0.01ā4 cm/s (RMS); Displacement: 0.001ā0.8 mm (peak-to-peak) |
| Frequency Range (Acceleration) | 10 Hzā200 Hz / 500 Hz / 1 kHz / 10 kHz |
| Frequency Range (Velocity) | 10 Hzā200 Hz / 500 Hz / 1 kHz |
| Frequency Range (Displacement) | 10 Hzā200 Hz / 500 Hz |
| Accuracy | Ā±5% |
| Power Supply | Li battery (approx. 20 hours without backlight) |
| Dimensions (mm) | 171 Ć 78.5 Ć 28 |
| Weight (g) | 230 |
| Standard Delivery | |
| Main Unit | 1 |
| Protection Pocket | 1 |
| High Sensitivity Probe | 1 |
| Power Adapter | 1 |
| Magnetic Base | 1 |
