āøDescription
| General Information | |

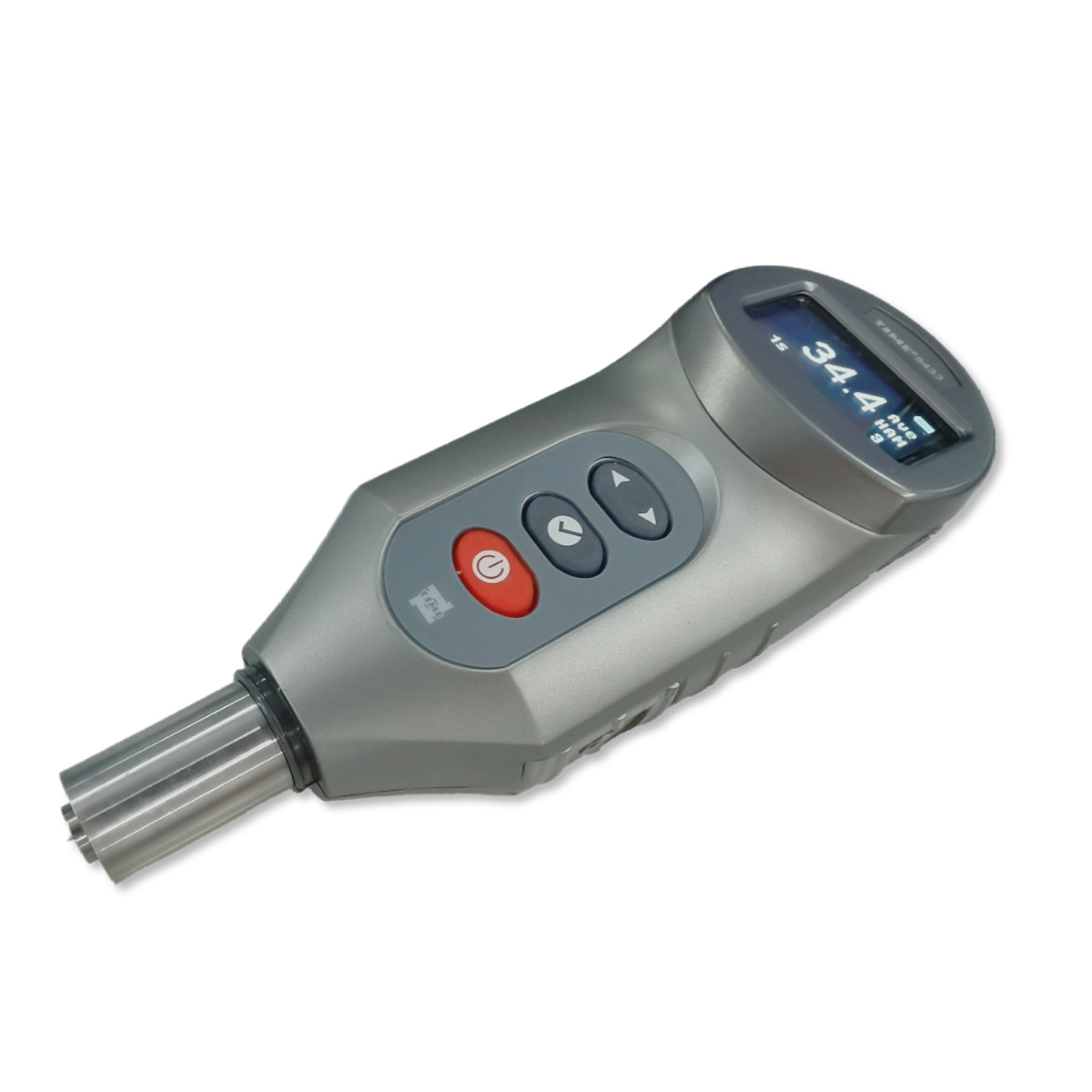

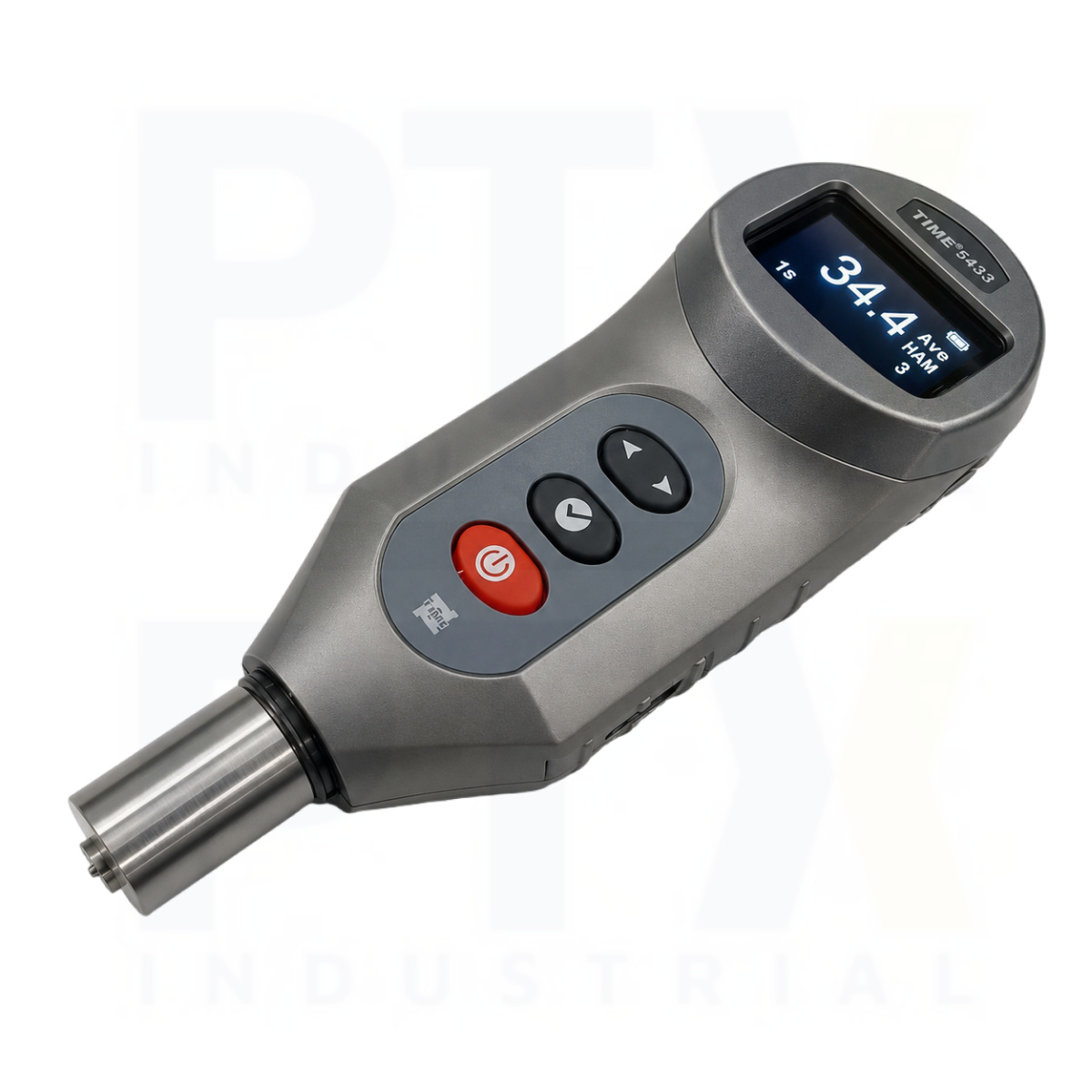

| Category | TIME 5433 Shore AM Hardness Tester |
| Model | TIME 5433 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | āŖ TIME 5433 Shore AM hardness tester designed for thin samples such as vulcanized rubber and plastic products āŖ Equipped with LVDT displacement sensor for high accuracy and reliable performance in harsh environments āŖ OLED display provides clear hardness value readout with menu-based operation āŖ Automatic zero-point calibration āŖ Three operating modes: real-time, peak value hold, and timed hold āŖ Peak value hold mode automatically locks the maximum hardness value āŖ Timed hold mode allows setting from 1 to 60 seconds, with automatic timing and value locking āŖ In lock modes, upper and lower limits can be preset with alarm indication when exceeded; supports average calculation and automatic removal of outliers āŖ Stores up to 200 averaged lock values āŖ Optional software enables data transfer to PC via USB in Microsoft Word or Excel format |
| Technical Specification | |
| Application | Thickness < 6 mm |
| Hardness Scale | Shore AM |
| Measuring Range | 0ā100 HAM |
| Tolerance | ā¤ Ā±1 HAM (20ā90) |
| Display Resolution | 0.1 HAM |
| Data Output | USB |
| Power Supply | Built-in rechargeable battery |
| Operating Temperature (Ā°C) | 0ā40 |
| Continuous Operating Time (h) | 24 |
| Dimensions (mm) | 173 Ć 56 Ć 42 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Test Block | 1 |
| Power Adapter | 1 |
| Operation Stand (for TIME5433) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
