▸Description
| General Information | |

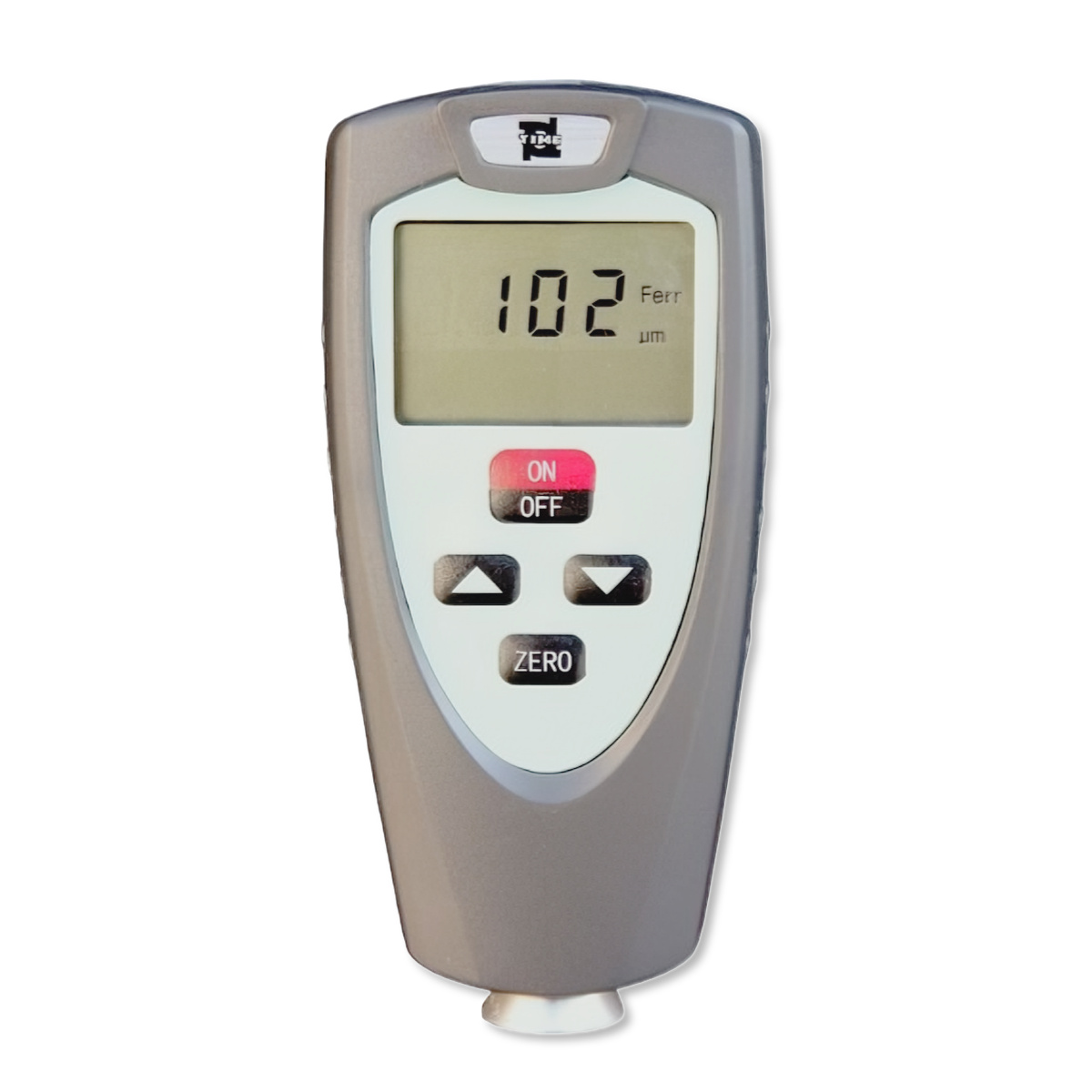

| Category | TIME 2511 Coating Thickness Gauge |
| Model | TIME 2511 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME2511 adopts the magnetic induction (F) method for coating thickness measurement ▪ TIME2511 operates in single-point measurement mode; ▪ Easy zero-point calibration ▪ TIME2511 features three selectable resolutions for different applications ▪ High-speed data acquisition, holds 600 readings (100 per group). ▪ Automatic power-off function ▪ Easy unit conversion between mm and inch |
| Technical Specification | |
| Probe Type | F |
| Measuring Method | Magnetic induction |
| Measuring Range | 0–1250 µm |
| Minimum Resolution | 1 µm, 5μm, 10μm |
| Tolerance (Zero Calibration) | ± (3% H + 1) µm; ± (3% H + 1.5) µm, ± (3%H+10)μm |
| Min. Curvature Radius (mm) | Convex: 1.5 |
| Min. Testing Area (mm) | Ø7 |
| Critical Substrate Thickness (mm) | 0.5 |
| Power Supply | 2 × AAA batteries |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 110 × 50 × 23 |
| Weight (g) | 100 |
| Standard Delivery | |
| Main Unit | 1 |
| Substrate | 1 |
| Calibration Foil (TT210) | 1 |
| Waist Pack (for Main Unit) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
