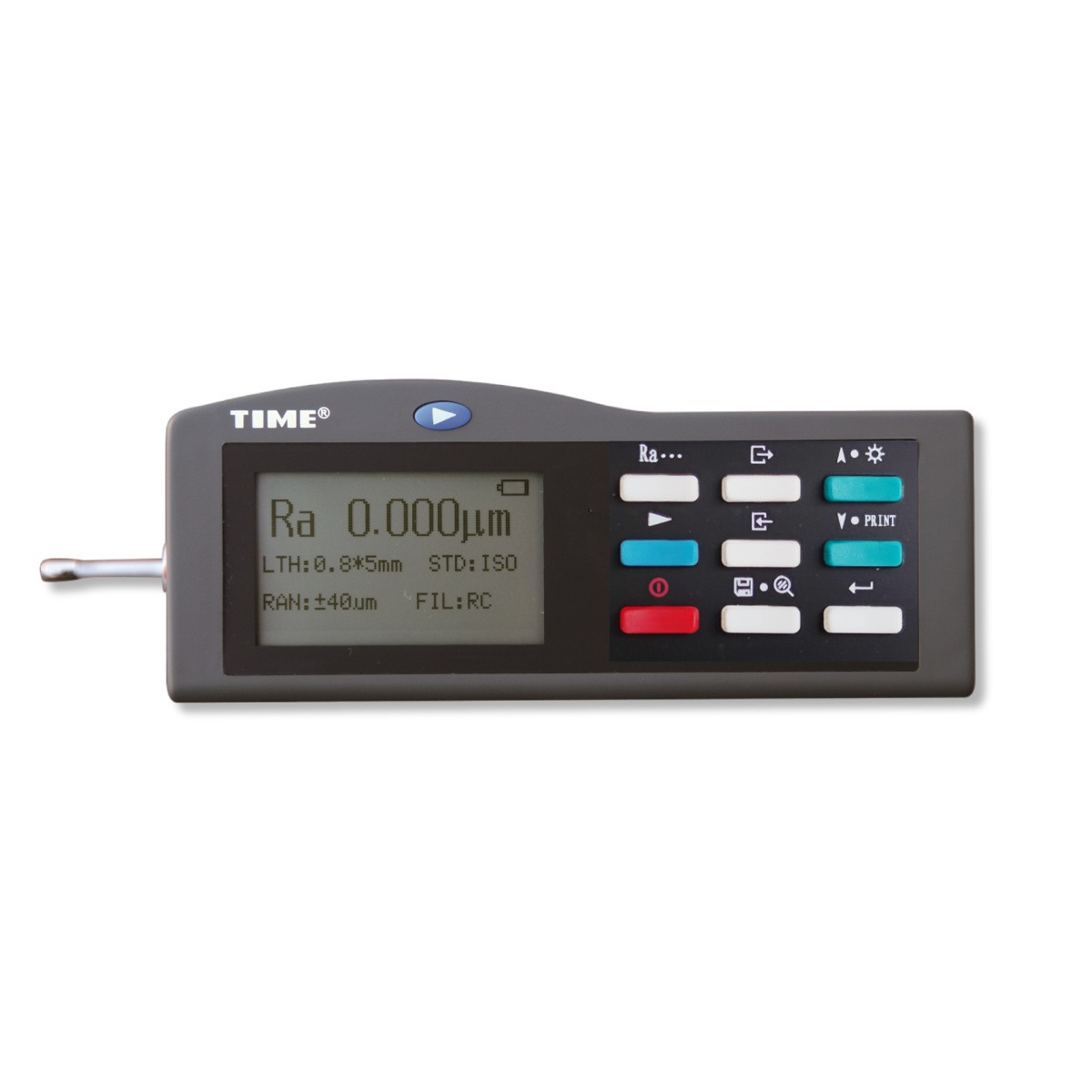

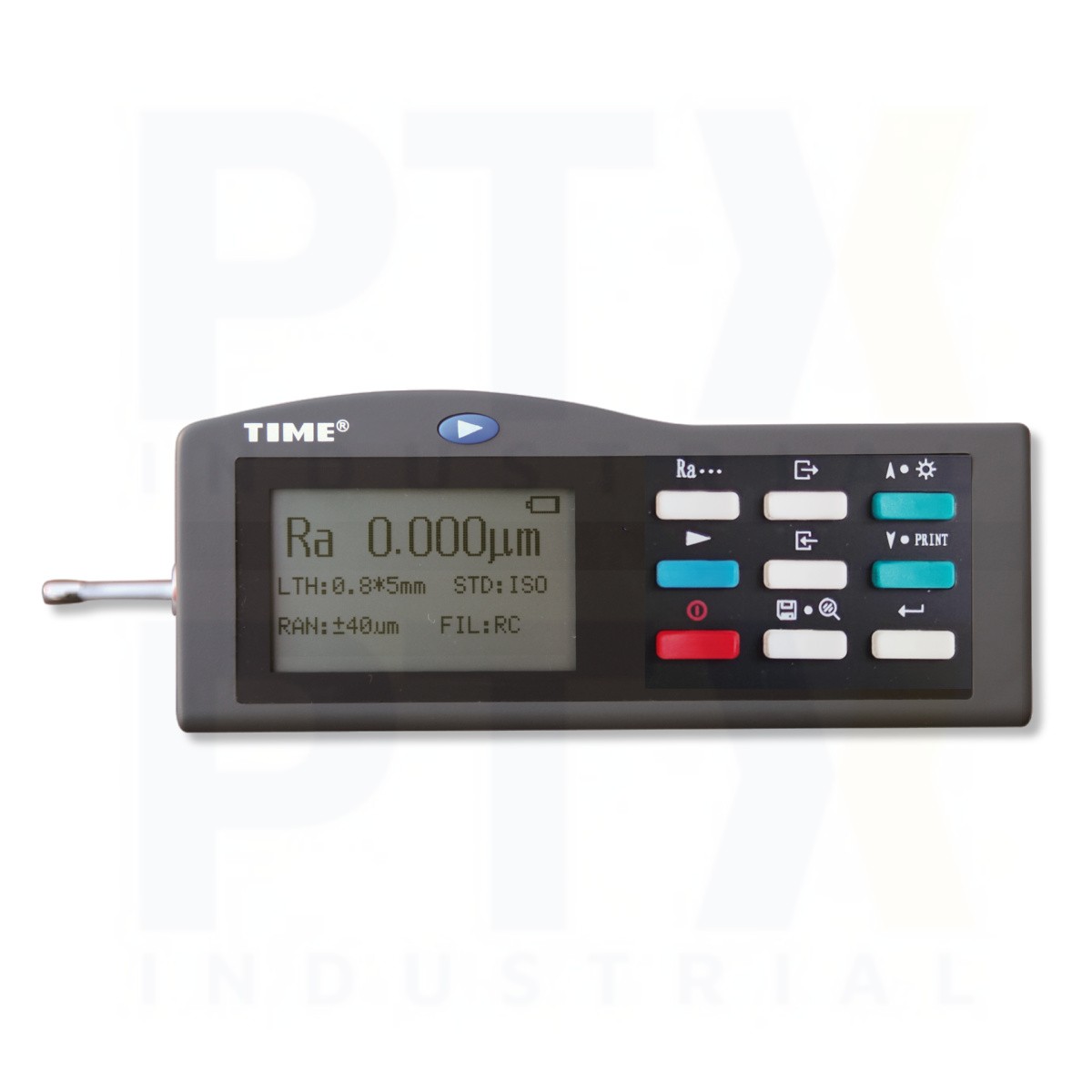

The TIME 3202 Surface Roughness Tester is a portable instrument designed for advanced surface finish evaluation in manufacturing, quality control, and laboratory environments. Supporting a comprehensive range of roughness parameters, it provides reliable analysis for machining, grinding, polishing, and other precision manufacturing applications.
Featuring a high-accuracy inductive pickup and advanced digital filtering technology, the TIME 3202 delivers consistent and repeatable measurement results across a wide range of materials and surface conditions. The large backlit LCD display and intuitive user interface enable efficient operation in both workshop and field environments.
Measurement data and graphs can be stored, reviewed, printed, or transferred to a computer via RS232 for further analysis using TIMESurf software. Combined with profile analysis capabilities and support for optional accessories, the TIME 3202 is well suited to demanding surface roughness inspection and quality assurance applications.
Key Features
ā¢ Multiple roughness parameters for comprehensive surface analysis
ā¢ Supports Rk parameter and profile analysis
ā¢ High-accuracy inductive pickup
ā¢ Large backlit LCD display
ā¢ Pickup position indicator
ā¢ RS232 connectivity with TIMESurf software
ā¢ Optional printer support for on-site reporting
ā¢ Storage for up to 15 groups of measurement data and graphs
ā¢ RC, PC-RC, Gauss, and D-P digital filters
ā¢ Optional accessories for specialised applications
ā¢ ISO, DIN, ANSI, and JIS compliant
ā¢ Rechargeable Li-ion battery
