▸Description
| General Information | |
| Category | SJ-6 Wet Sponge Holiday Detector |
| Model | SJ-6 |

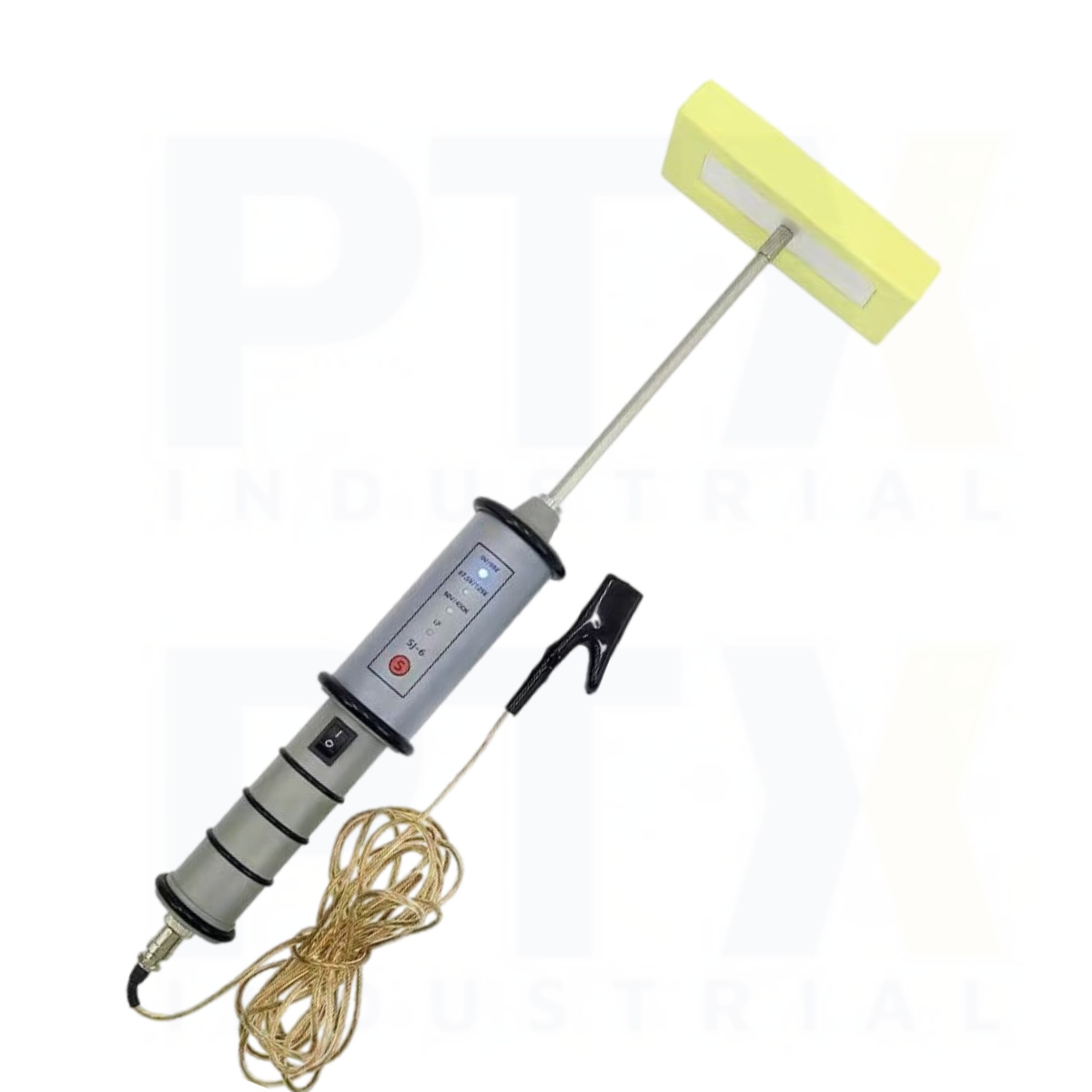

| Manufacturer (OEM) | The TIME SJ-6 Wet Sponge Holiday Detector is a multi-voltage coating inspection instrument that utilizes wet sponge testing technology to detect pinholes, holidays, cracks, voids, and coating defects in non-conductive coatings up to 500 μm thick applied on conductive substrates.
The instrument is designed for low-voltage inspection of thin coatings and provides three selectable test voltages with corresponding sensitivity levels for different coating thickness requirements. |
| Technical Specification | |
| Parameter | Specification |
| Product Model | SJ-6 Wet Sponge Holiday Detector |
| Detection Method | Wet Sponge Testing |
| Application | Detection of pinholes, cracks, voids, and coating defects in insulating coatings on conductive substrates |
| Maximum Coating Thickness | Up to 500 μm |
| Voltage Setting A | Suitable for coatings up to 300 μm |
| Voltage Setting B | Suitable for coatings up to 500 μm |
| Voltage Setting C | Suitable for coatings up to 500 μm |
| Sensitivity (Setting A) | >90 kΩ ±5% |
| Sensitivity (Setting B) | >125 kΩ ±5% |
| Sensitivity (Setting C) | >400 kΩ ±5% |
| Battery Type | Rechargeable Lithium Battery |
| Battery Capacity | 11.1 V / 1100 mAh |
| Power Consumption | ≤0.5 W |

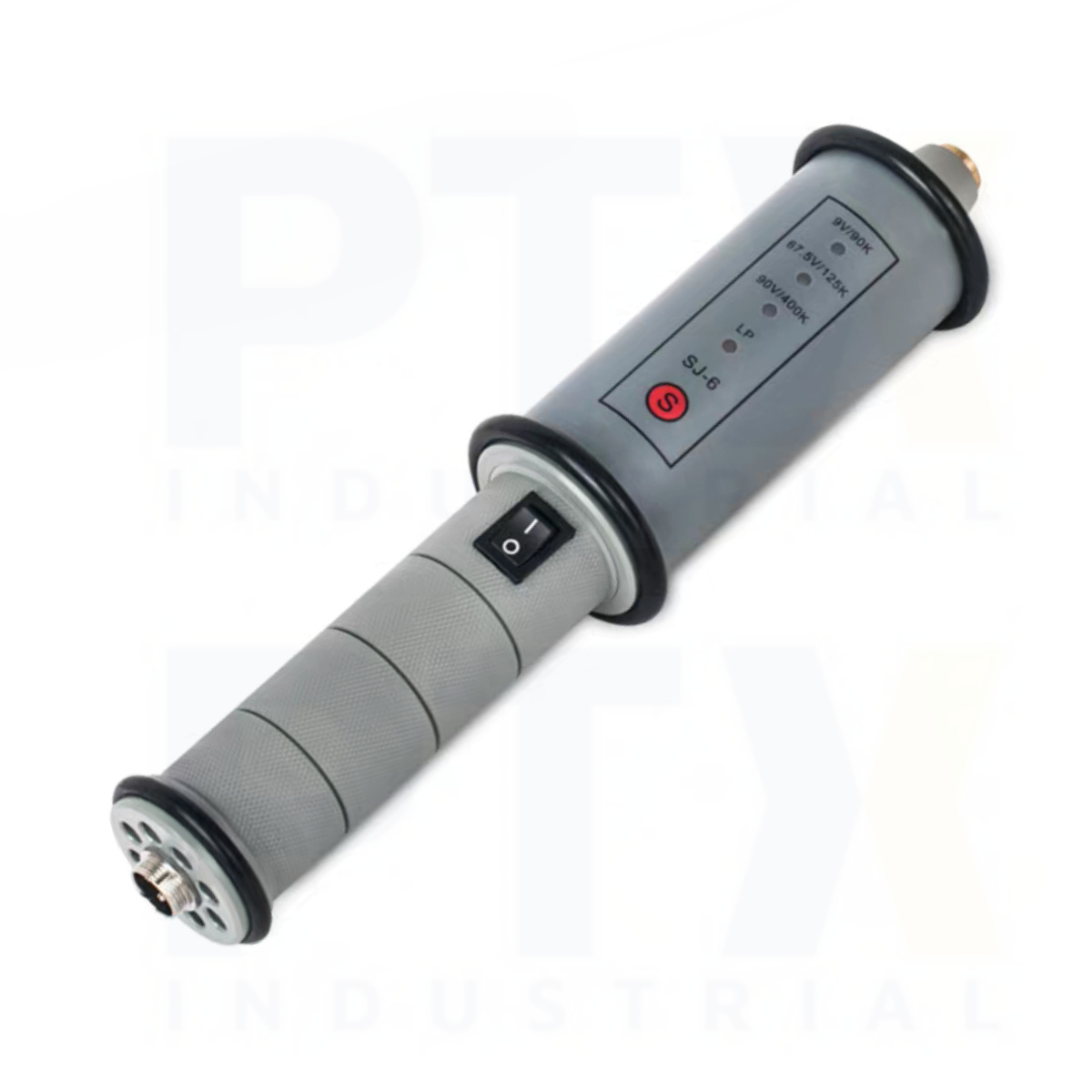

| Voltage Indication | Dedicated LED indicator for each voltage setting |
| Main Unit Weight | Approx. 500 g |
| Main Unit Dimensions | 290 × 53 × 53 mm |
| Sponge Dimensions | 170 × 70 × 30 mm |
| Probe Rod Length | 195 mm |
| Ground Cable Length | 4 m |
| Battery Charger | 12 V DC Constant-Voltage Lithium Battery Charger |
| Standard Delivery | |
| Item | Quantity |
| SJ-6 Wet Sponge Holiday Detector Main Unit | 1 pc |
| Probe Rod | 1 pc |
| Sponge Probe Head | 1 pc |
| Ground Cable | 1 pc |
| Battery Charger | 1 pc |
| Plastic Carrying Case | 1 pc |
| Instruction Manual | 1 pc |
| Warranty Card & Certificate of Conformity | 1 pc |
