Surface Roughness Tester Accessories Archives

Add to cart
Surface Roughness Tester Accessories
TIME A202 Surface Roughness Tester Measuring Platform
722.50 USD $ ex. GST

Small, lightweight and easy to carry. Simple to operate and suitable for TIME 3200, TIME 3202, TIME 3221 and TIME 3234 surface roughness testers.
Add to cart
Surface Roughness Tester Accessories
TIME S201 Standard Pickup
977.50 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 400μm
Add to cart
Surface Roughness Tester Accessories

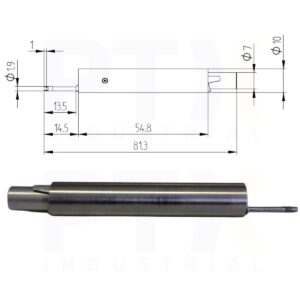

TIME S211 Small Hole Pickup
1,190.00 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 100μm

Min. diameter of hole: ø2mm

Max. depth of hole: 13.5mm
Add to cart
Surface Roughness Tester Accessories
TIME S212 Deep Groove Pickup
1,360.00 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 400μm

Min. width of groove: 2.5mm

Max. depth of groove: 10mm
Add to cart
Surface Roughness Tester Accessories
TIME S213 Deep Hole Pickup
1,657.50 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 400μm

Min. width of hole: ø2mm

Max. depth of hole: 20mm
Add to cart
Surface Roughness Tester Accessories
TIME S214 Curved Surface Pickup
1,530.00 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 200μm
Add to cart
Surface Roughness Tester Accessories

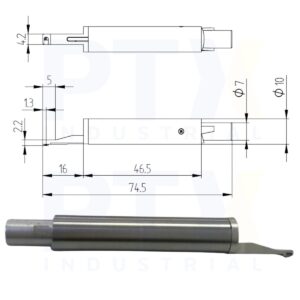

TIME S215 Gear Tooth Surface Pickup
1,530.00 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 400μm
Add to cart
Surface Roughness Tester Accessories

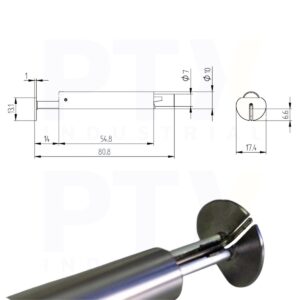

TIME S220 O-Ring Groove Pickup
2,040.00 USD $ ex. GST

Radius for needle point: 5μm

Angle for needle: 90°

Force for needle: 4mN

Measuring range: 200μm

Thickness of lead head: 1mm
Add to cart
Surface Roughness Tester Accessories

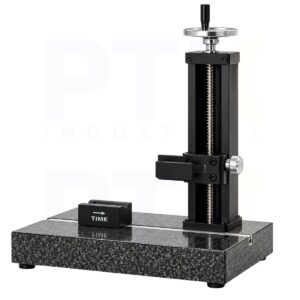

TIME TA620 Surface Roughness Tester Measuring Platform
1,487.50 USD $ ex. GST

Designed for TIME 3200 and TIME 3202. Equipped with a screw-lift mechanism and V-groove to support small workpieces, enhancing measurement accuracy and repeatability.
Add to cart
Surface Roughness Tester Accessories
TS100 Standard Pickup
722.50 USD $ ex. GST

With skid for roughness test on planesurface, shaft and inner surface ofholes with max. depth of 22mm, min diameter 5mm.
Add to cart
Surface Roughness Tester Accessories
TS110 Pickup for Curved Surface
807.50 USD $ ex. GST

Used for roughness testing of curved surface with min curvature radius 3mm, working with measuring platform TIMEA202
Add to cart
Surface Roughness Tester Accessories

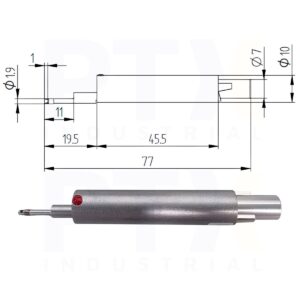

TS120 Pickup for Small Holes
1,020.00 USD $ ex. GST

Used for roughness testing of small holes with min. 2mm diameter of inner surface, max. depth 9mm
